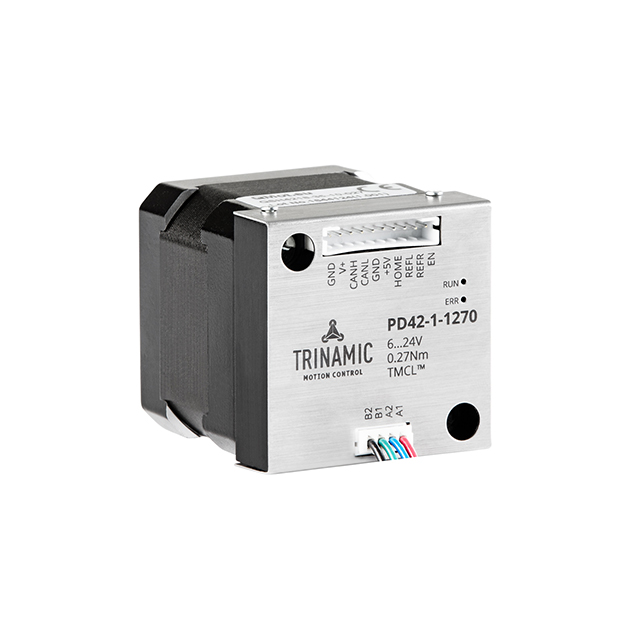

PD42-1-1270-TMCL
PANDRIVE NEMA17, 24V, 38 OZ IN/Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated PANdrive™ series bipolar stepper motor, part number PD42-1-1270-TMCL. This hybrid stepper motor features a NEMA frame size of 17, with dimensions of 1.654 inches (42mm) square. It offers a step angle of 1.8 degrees, providing 200 steps per revolution. The motor is rated for 24VDC and has a current rating of 1 A per phase, with a coil resistance of 1 Ohm. Holding torque is specified at 31.2 oz-in (220 mNm). Key features include an integrated controller and a round shaft, with a termination style utilizing a connector. The mounting hole spacing is 1.220 inches (31mm). Operating temperature range is -20°C to 50°C. This component is utilized in automation, robotics, and industrial control applications.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Integrated Controller, Round Shaft |
| Packaging | Bulk |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | -20°C ~ 50°C |
| Termination Style | Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 31.2 / 220 |
| Coil Type | Bipolar |
| Diameter - Shaft | - |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | - |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 1 A |
| Coil Resistance | 1 Ohms |
| Steps per Revolution | 200.0 |
