PD42-1-1243-IOLINK
PANDRIVE NEMA17, 28V, 0.27NMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

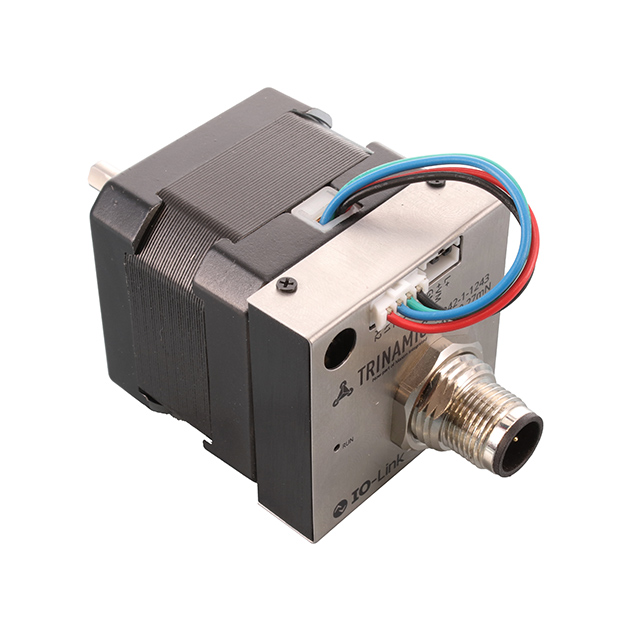

Analog Devices Inc./Maxim Integrated PANdrive™ PD42-1-1243-IOLINK is a NEMA 17 hybrid stepper motor designed for precision motion control applications. This motor features a 1.8° step angle and a holding torque of 350 mNm (49.56 oz-in), ensuring accurate positioning. It operates at a rated voltage of 24VDC with a current rating of 1A per phase and a coil resistance of 4.5 Ohms. The motor's physical dimensions are a square frame measuring 1.654" x 1.654" (42.00mm x 42.00mm), with a shaft diameter of 0.197" (5.00mm) and a shaft and bearing length of 0.945" (24.00mm). Mounting hole spacing is 1.220" (31.00mm). The PD42-1-1243-IOLINK is commonly utilized in industrial automation, robotics, and medical equipment.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.654"" x 1.654"" (42.00mm x 42.00mm) |
| Type | Hybrid |
| Accuracy | ±5% |
| Operating Temperature | - |
| Termination Style | Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 49.56 / 350 |
| Coil Type | - |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 1.220"" (31.00mm) |
| Length - Shaft and Bearing | 0.945"" (24.00mm) |
| NEMA Frame Size | 17 |
| Current Rating (Amps) | 1 A |
| Coil Resistance | 4.5 Ohms |
Request a Quote
