PD28-1-1021-TMCL
STEPPER MOTOR HYBRID BIPOLAR 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Stepper Motors
Quality Control: Learn More

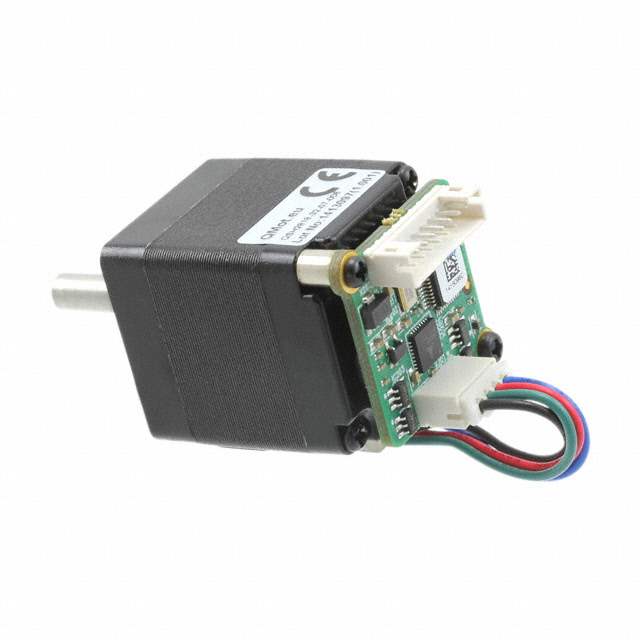

Analog Devices Inc./Maxim Integrated PANdrive™ Series bipolar stepper motor, part number PD28-1-1021-TMCL. This hybrid stepper motor features a NEMA frame size of 11, with dimensions of 1.100" x 1.100" (28.00mm x 28.00mm). It operates with a rated voltage of 24VDC and a current rating of 700 mA per coil. The motor provides 200 steps per revolution with a step angle of 1.8°, offering precise positioning. Key features include an integrated controller and a flatted shaft with a diameter of 0.197" (5.00mm) and length of 0.787" (20.00mm). Mounting hole spacing is 0.906" (23.00mm). This component is suitable for applications in robotics, automation, and medical equipment requiring controlled motion.
Additional Information
Series: PANdrive™RoHS Status: RoHS non-compliantManufacturer Lead Time: 75 week(s)Product Status: ActivePackaging: CaseDatasheet:Download Free CAD Model:
Technical Details:
| Features | Integrated Controller, Flatted Shaft |
| Packaging | Case |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 1.100"" x 1.100"" (28.00mm x 28.00mm) |
| Type | Hybrid |
| Accuracy | - |
| Operating Temperature | - |
| Termination Style | Wire Leads with Connector |
| Step Angle | 1.8° |
| Torque - Holding (oz-in / mNm) | 8.49 / 60 |
| Coil Type | Bipolar |
| Diameter - Shaft | 0.197"" (5.00mm) |
| Mounting Hole Spacing | 0.906"" (23.00mm) |
| Length - Shaft and Bearing | 0.787"" (20.00mm) |
| NEMA Frame Size | 11 |
| Current Rating (Amps) | 700 mA |
| Steps per Revolution | 200.0 |
