MAX4806CTN+
IC DGTL PULSER DUAL 56TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Specialized
Quality Control: Learn More

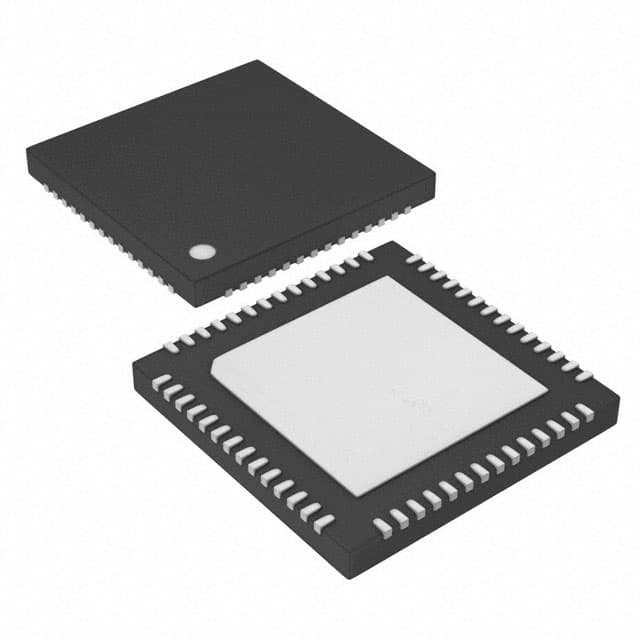

Analog Devices Inc./Maxim Integrated MAX4806CTN- is a dual digital pulser IC housed in a 56-TQFN (7x7) exposed pad package. This component is designed for general-purpose applications and offers overvoltage protection. It operates within a supply voltage range of 2.7V to 6V and draws a quiescent current of 100µA. The MAX4806CTN- is suitable for surface mounting and operates in ambient temperatures from 0°C to 70°C. This device finds application in various industries requiring precise signal generation and protection. It is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 56-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 6V |
| Applications | General Purpose, Overvoltage Protection |
| Current - Supply | 100µA |
| Supplier Device Package | 56-TQFN (7x7) |
