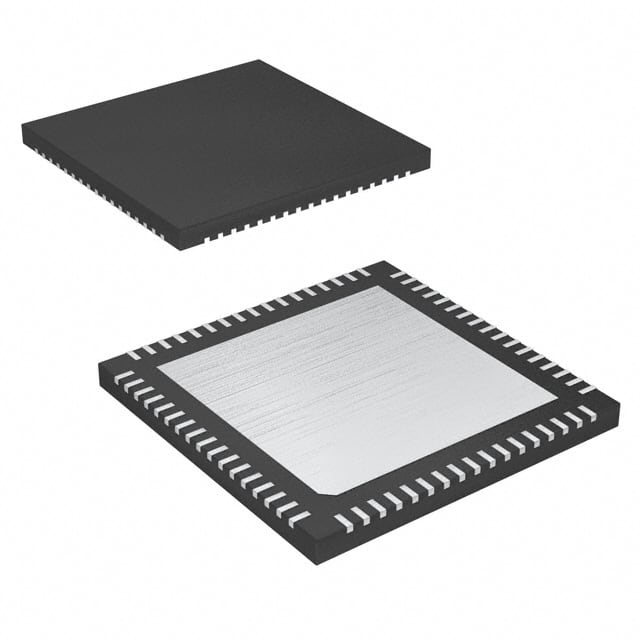

MAX14809ETK+T
IC MUX DUAL HV 68TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Specialized
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX14809ETK-T is a dual high-voltage multiplexer designed for specialized applications. This component, housed in a 68-TQFN (10x10) package, features a surface mount configuration. It operates within a temperature range of -40°C to 85°C and supports supply voltages of 3V and 5V. The MAX14809ETK-T is specifically engineered for use in ultrasound imaging systems, leveraging its advanced multiplexing capabilities to manage high-voltage signals efficiently. Its packaging is provided on a Tape & Reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V, 5V |
| Applications | Ultrasound Imaging |
| Current - Supply | - |
| Supplier Device Package | 68-TQFN (10x10) |
