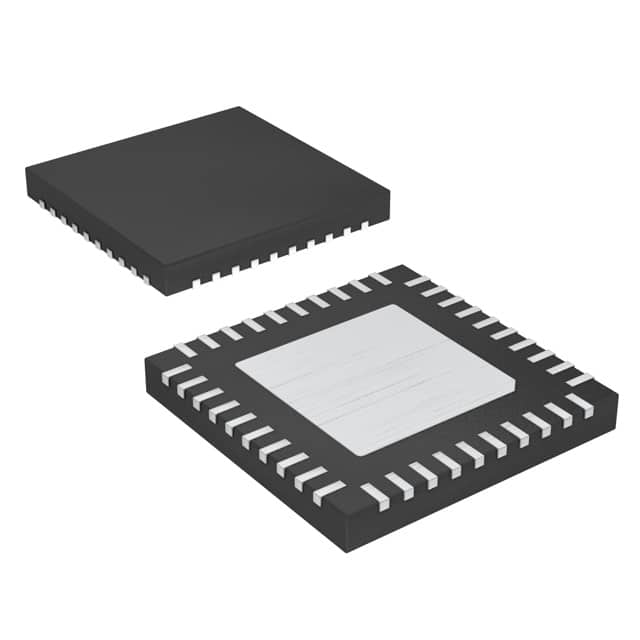

MAX8770GTL+T
IC REG CTRLR INTEL 1OUT 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose Regulators
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX8770GTL-T is a Quick-PWM™ voltage regulator controller designed for Intel IMVP-6+ applications. This single-output device provides precise voltage regulation with an output range of 0.013V to 1.5V, drawing from an input voltage of 4.5V to 5.5V. The MAX8770GTL-T is housed in a 40-TQFN (6x6) package with an exposed pad, suitable for surface mount applications. Its operating temperature range is -40°C to 105°C. This component is utilized in systems requiring advanced power management for Intel platforms. The device is supplied on tape and reel.
Additional Information
Series: Quick-PWM™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Voltage - Output | 0.013V ~ 1.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Voltage - Input | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Applications | Controller, Intel IMVP-6+ |
| Supplier Device Package | 40-TQFN (6x6) |
