MAX4986CTO+T
IC MUX/DEMUX SAS/SATA 42TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More

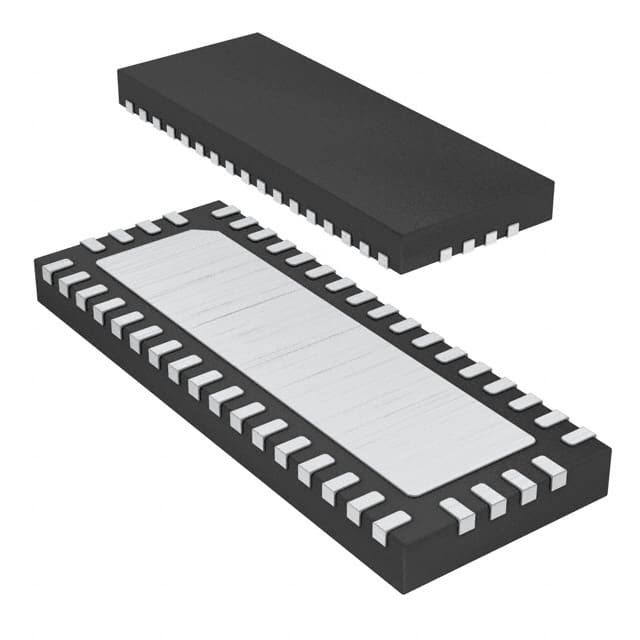

The Analog Devices Inc./Maxim Integrated MAX4986CTO-T is a single-channel, 2:1 multiplexer/demultiplexer switch designed for high-speed serial data transmission. This component is engineered for SAS/SATA applications within the telecommunications industry. It features a 42-TQFN (3.5x9) exposed pad package, suitable for surface mount assembly. The device operates with a single positive supply voltage ranging from 3V to 3.6V and has an operating temperature range of 0°C to 70°C. This electronic component facilitates efficient signal routing in demanding communication infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | SAS/SATA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 42-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Applications | Telecommunications |
| On-State Resistance (Max) | - |
| -3db Bandwidth | - |
| Supplier Device Package | 42-TQFN (3.5x9) |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 1 |
