MAX4885EETG+TCK2
IC VGA SWITCH ESD 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4885EETG-TCK2 is a single-channel, 2:1 multiplexer/demultiplexer video switch IC. This SPDT switch offers a typical on-state resistance of 6 Ohms and operates from a single supply voltage of 2V to 5.5V. The device features RGB signal compatibility and is designed for surface-mount applications. Housed in a 24-TQFN (4x4) exposed pad package, it is supplied on tape and reel. This component is suitable for applications in the video industry, including display systems and video routing. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | RGB |
| Packaging | Tape & Reel (TR) |

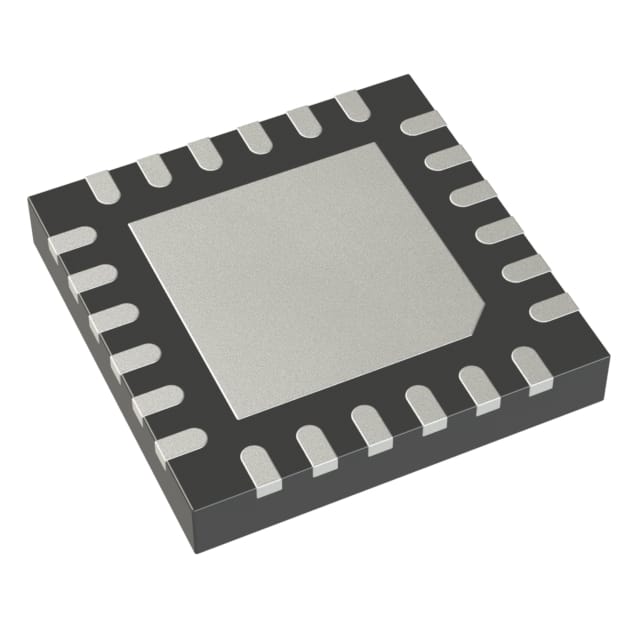

| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Video |
| On-State Resistance (Max) | 6Ohm (Typ) |
| -3db Bandwidth | - |
| Supplier Device Package | 24-TQFN (4x4) |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 1 |
