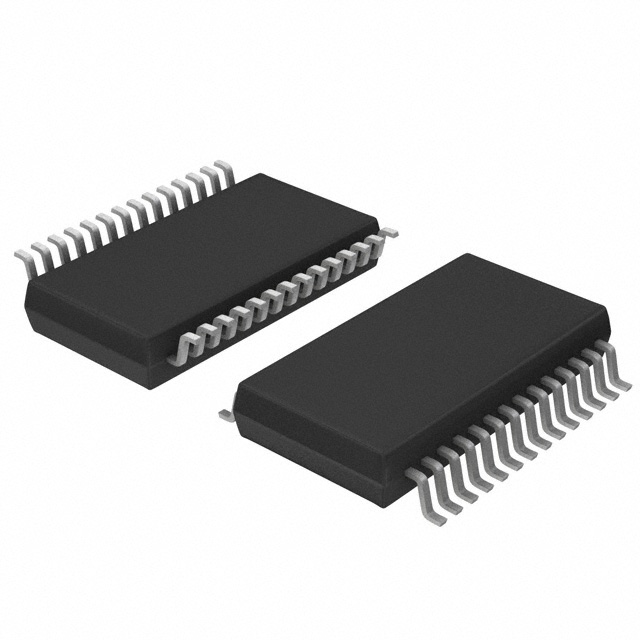

MAX4574EEI+T
IC SW AUD/VID SER 3WIRE 28-QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4574EEI-T is an 11-channel audio/video switch designed for high-performance applications. This SPST/SPDT switch operates with a single supply voltage ranging from 2.7V to 5.25V, offering a 150MHz -3dB bandwidth. Key features include break-before-make and clickless switching, controlled via an SPI interface. The device exhibits a maximum on-state resistance of 35 Ohms and is housed in a 28-QSOP package for surface mounting. Operating across a temperature range of -40°C to 85°C, the MAX4574EEI-T is suitable for use in various audio and video signal routing applications. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Break-Before-Make, Clickless, SPI |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Audio, Video |
| On-State Resistance (Max) | 35Ohm |
| -3db Bandwidth | 150MHz |
| Supplier Device Package | 28-QSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.25V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPST, SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1, 1:2 |
| Number of Channels | 11 |
