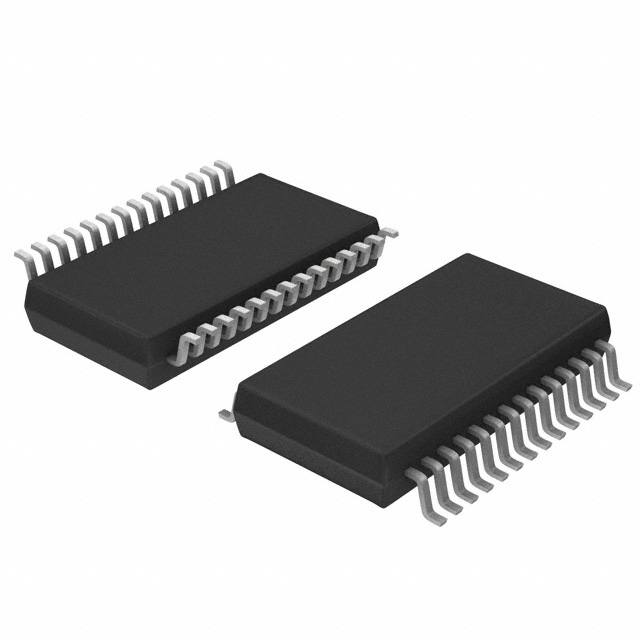

MAX4572CEI+T
IC AUDIO/VIDEO SWITCH 28QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4572CEI-T is an 11-channel audio/video switch designed for high-performance applications. This device features a 2.7V to 5.25V single supply voltage and operates across a 0°C to 70°C temperature range. With a -3dB bandwidth of 150MHz, it supports efficient signal routing for both audio and video signals. The switch configuration includes both SPST and SPDT circuits, with a 2:1 and 1:2 multiplexer/demultiplexer capability. Key operational characteristics include a maximum on-state resistance of 35 Ohms, break-before-make switching, and clickless operation, crucial for maintaining signal integrity. The device utilizes an I2C interface for control. The MAX4572CEI-T is supplied in a 28-QSOP package on tape and reel, suitable for surface mount assembly. It finds application in audio and video processing systems where precise signal switching is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Break-Before-Make, Clickless, I2C |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Applications | Audio, Video |
| On-State Resistance (Max) | 35Ohm |
| -3db Bandwidth | 150MHz |
| Supplier Device Package | 28-QSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.25V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPST, SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1, 1:2 |
| Number of Channels | 11 |
