MAX4566ESE+
IC VIDEO SWITCH DUAL SPST 16SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4566ESE- is a dual SPST video switch IC designed for high-performance video signal routing. Featuring a 350MHz -3dB bandwidth, this component is suitable for applications demanding accurate video signal transmission. The device offers bi-directional signal flow and break-before-make switching for reliable signal path management. Its T-switch configuration and 2:2 multiplexer/demultiplexer circuitry enable flexible signal routing. With an on-state resistance of 60 Ohms maximum, the MAX4566ESE- ensures minimal signal degradation. It operates with single supply voltages from 2.7V to 12V or dual supplies from ±2.7V to ±6V. The 16-SOIC package facilitates surface mounting for efficient board integration. This component is commonly employed in professional video equipment, broadcast systems, and high-definition display interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bi-Directional, Break-Before-Make, T-Switch Configuration |
| Packaging | Tube |

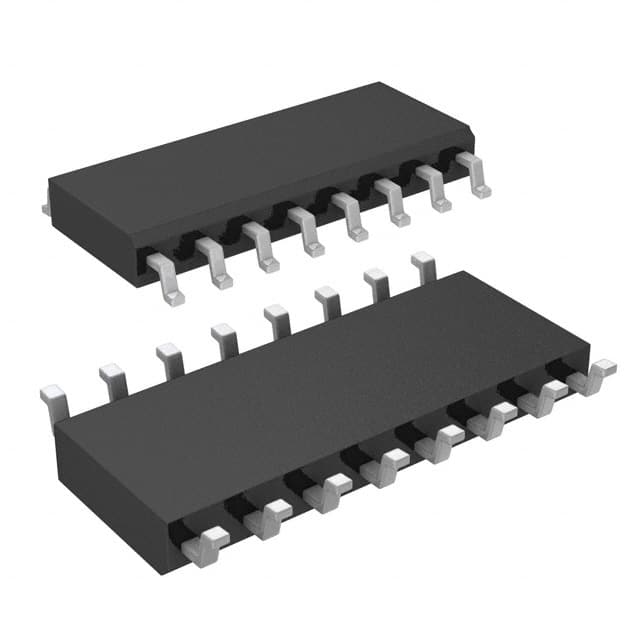

| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Video |
| On-State Resistance (Max) | 60Ohm |
| -3db Bandwidth | 350MHz |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 6V |
| Switch Circuit | 4PST |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Channels | 1 |
