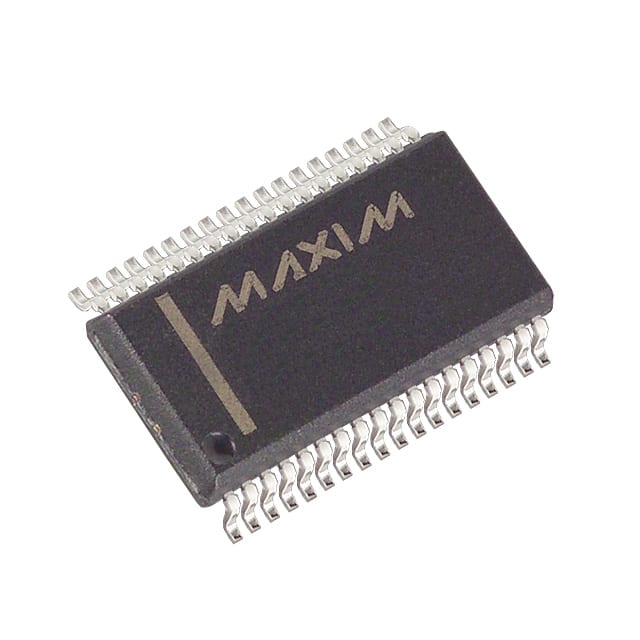

MAX4549EAX+T
IC AUD/VIDCROSSPOINT SWIT 36SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4549EAX-T is a 3-channel, 3:2 analog multiplexer/demultiplexer designed for audio and video signal routing. This device features a -3dB bandwidth of 250MHz, allowing for high-fidelity signal transmission. The MAX4549EAX-T operates from a single +2.7V to +5.5V supply and offers a low on-state resistance of 35 Ohms maximum. Its SPI interface enables straightforward control of channel selection. Key features include break-before-make switching for signal integrity. The component is packaged in a 36-SSOP and is supplied on a tape and reel. Applications for this device span across consumer electronics and professional audio/video equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Break-Before-Make, SPI |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Audio, Video |
| On-State Resistance (Max) | 35Ohm |
| -3db Bandwidth | 250MHz |
| Supplier Device Package | 36-SSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 3:2 |
| Number of Channels | 3 |
