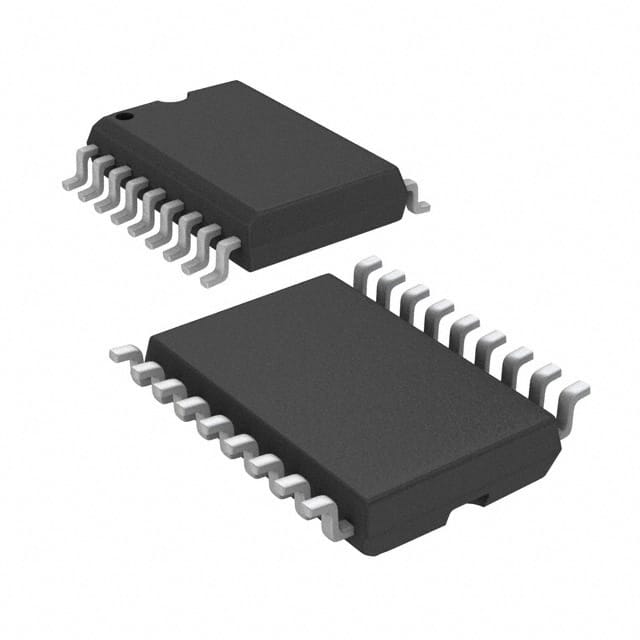

MAX311EWN
IC VIDEO MULTIPLEXER 4X1 18SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX311EWN is a 2-channel, 4:1 video multiplexer designed for efficient signal routing in video switching applications. This electronic component, housed in an 18-SOIC package, offers break-before-make switching for reliable signal integrity. It supports both single and dual supply voltages, ranging from 9V to 36V for single supply and ±4.5V to ±18V for dual supply. The device features an on-state resistance of up to 250 Ohms and operates within an ambient temperature range of -40°C to 85°C. Its capabilities make it suitable for use in video processing systems across various industries.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Break-Before-Make |
| Packaging | Tube |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Video |
| On-State Resistance (Max) | 250Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 18-SOIC |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Channels | 2 |
