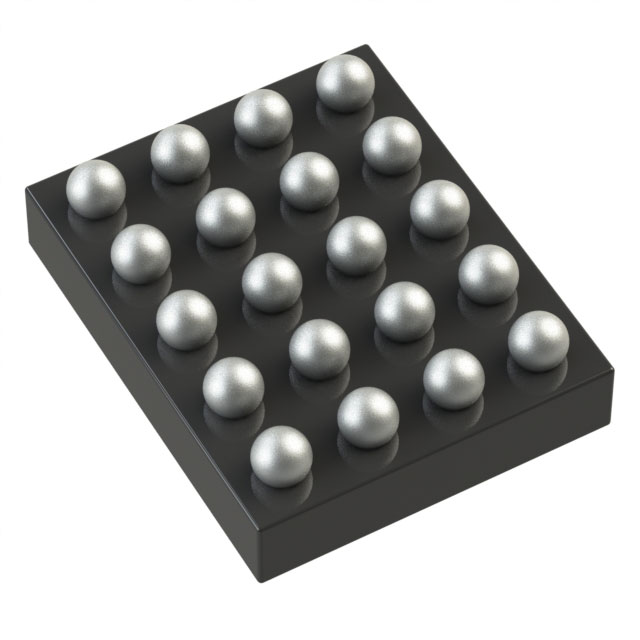

MAX14526DEEWP+T
IC ID USB CABLE CONN 20-WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Special Purpose
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX14526DEEWP-T is a USB, UART switch IC designed for robust connectivity solutions. This single-channel component, housed in a compact 20-WLP (Wafer Level Package), facilitates seamless switching between USB and UART interfaces. Its versatile operating voltage range of 2.8V to 5.5V makes it suitable for a broad spectrum of applications. The MAX14526DEEWP-T is engineered for surface-mount installation, ensuring efficient board space utilization. It operates within an ambient temperature range of -40°C to 85°C, providing reliable performance in demanding environments. This component is commonly utilized in consumer electronics, automotive systems, and industrial control applications where flexible interface management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 20-WFBGA, WLBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | USB, UART |
| On-State Resistance (Max) | - |
| -3db Bandwidth | - |
| Supplier Device Package | 20-WLP |
| Voltage - Supply, Single (V+) | 2.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | - |
| Number of Channels | 1 |
