TMCM-0960-MOTIONPY V21
SBC 1 CORE -/- RAMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Single Board Computers (SBCs)
Quality Control: Learn More

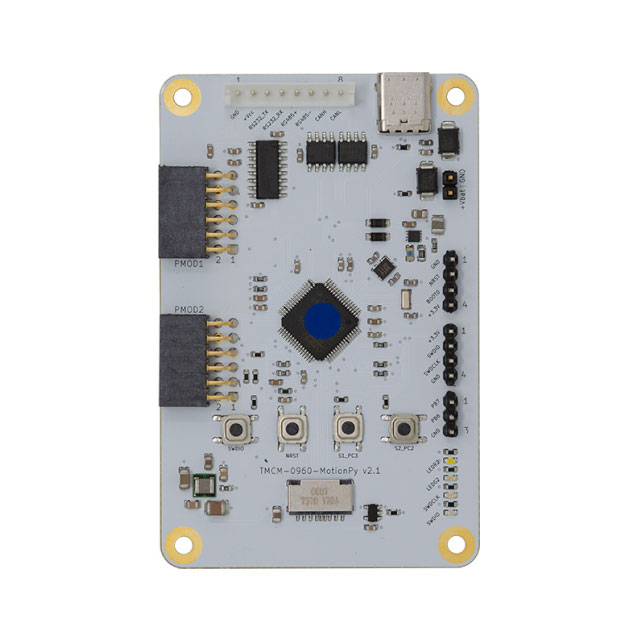

The Analog Devices Inc./Maxim Integrated TMCM-0960-MOTIONPY-V21 is a single-board computer featuring a 1-core ARM Cortex-M4 processor, specifically the STM32F405RGT6. This compact board, measuring 3.350" x 2.170" (85.09mm x 55.12mm), offers extensive connectivity options including CAN, GPIO, PMOD, SPI, and UART expansion sites. It also provides 6 analog inputs and 6 analog outputs, along with one RS-232 interface and USB-C for versatile communication. Storage is managed via a MicroSD interface. This component is suitable for applications in industrial automation and embedded systems.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | - |
| Packaging | Box |
| Size / Dimension | 3.350"" x 2.170"" (85.09mm x 55.12mm) |
| Speed | - |
| Contents | - |
| Operating Temperature | - |
| Core Processor | ARM Cortex-M4, STM32F405RGT6 |
| Cooling Type | - |
| Form Factor | - |
| Expansion Site/Bus | CAN, GPIO, PMOD, SPI, UART |
| Video Outputs | - |
| Ethernet | - |
| USB | USB-C |
| RS-232 (422, 485) | 1 |
| Digital I/O Lines | - |
| Analog Input:Output | 6:6 |
| Watchdog Timer | - |
| Storage Interface | MicroSD |
| Number of Cores | 1 |
| RAM Capacity/Installed | -/- |
