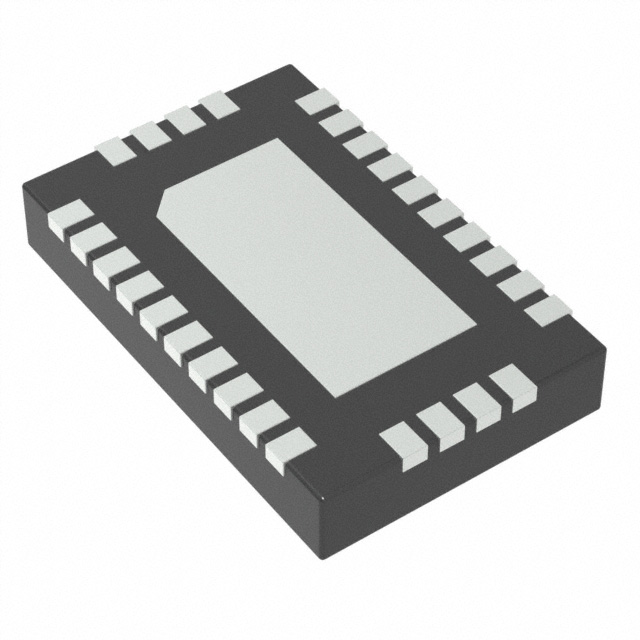

MAX4952ACTI+T
IC REDRIVER SAS/SATA 2CH 28TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX4952ACTI-T is a 2-channel SAS/SATA ReDriver designed for high-speed signal integrity applications. Operating from a 3V to 3.6V supply, this buffer features input equalization and output pre-emphasis for robust signal conditioning. It provides 300ps of delay and supports a maximum data rate of 12 Gbps. The device is housed in a compact 28-TQFN (3.5x5.5) exposed pad package, suitable for surface mount applications. With a typical supply current of 175mA, the MAX4952ACTI-T is engineered for demanding SAS and SATA interfaces commonly found in enterprise storage, server, and networking equipment. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Delay Time | 300ps |
| Number of Channels | 2 |
| Mounting Type | Surface Mount |
| Output | - |
| Type | Buffer, ReDriver |
| Input | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Applications | SAS, SATA |
| Current - Supply | 175mA |
| Data Rate (Max) | - |
| Supplier Device Package | 28-TQFN (3.5x5.5) |
| Signal Conditioning | Input Equalization, Output Pre-Emphasis |
