MAX14955ETL+
IC REDRIVER PCIE 1CH 40TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More

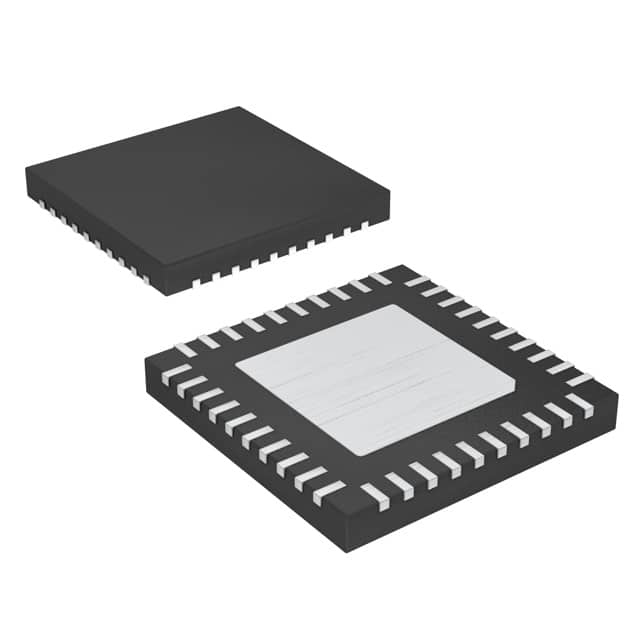

Analog Devices Inc./Maxim Integrated MAX14955ETL- is a single-channel PCIe ReDriver designed for signal integrity enhancement in high-speed serial data transmission. This buffer/re-driver component features integrated equalization and de-emphasis capabilities for robust signal conditioning. Operating within a supply voltage range of 3V to 3.6V, it draws a maximum of 102mA. The MAX14955ETL- is housed in a 40-TQFN (6x6) exposed pad package, suitable for surface mounting. Its typical delay time is 160ps. This device is utilized in applications requiring advanced PCIe signal management, such as data centers and high-performance computing. The component is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-WFQFN Exposed Pad |
| Delay Time | 160ps |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Output | - |
| Type | Buffer, ReDriver |
| Input | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Applications | PCIe |
| Current - Supply | 102mA |
| Data Rate (Max) | - |
| Supplier Device Package | 40-TQFN (6x6) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
