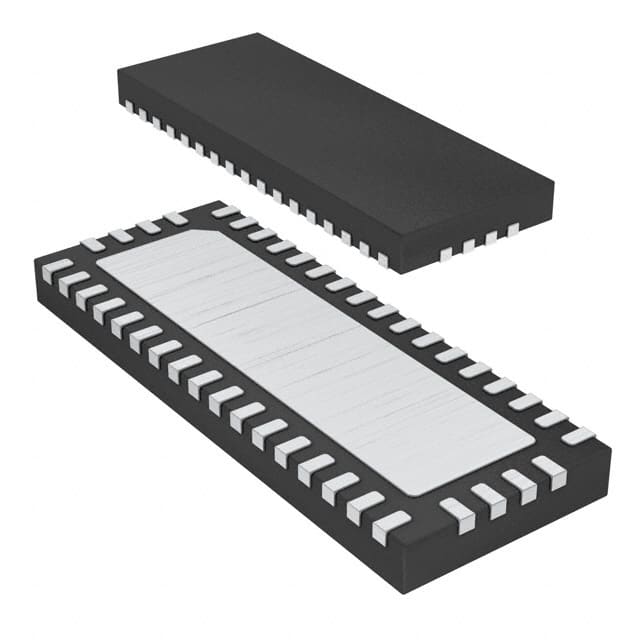

MAX14950CTO+
IC REDRIVER PCIE 4CH 42TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX14950CTO- is a 4-channel PCIe Redriver designed for high-speed signal integrity applications. This buffer/re-driver features input equalization and output de-emphasis for robust signal conditioning, critical for maintaining data fidelity in demanding communication protocols. With a data rate of up to 160ps delay, it is well-suited for systems requiring precise timing. The device operates over a 3V to 3.6V supply range, drawing a maximum of 328mA. Packaged in a 42-TQFN (3.5x9) with an exposed pad, it is designed for surface mount assembly. The MAX14950CTO- is engineered for applications within the PCIe ecosystem, commonly found in data centers, networking equipment, and high-performance computing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 42-WFQFN Exposed Pad |
| Delay Time | 160ps |
| Number of Channels | 4 |
| Mounting Type | Surface Mount |
| Output | - |
| Type | Buffer, ReDriver |
| Input | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Applications | PCIe |
| Current - Supply | 328mA |
| Data Rate (Max) | - |
| Supplier Device Package | 42-TQFN (3.5x9) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
