MAXREFDES101#

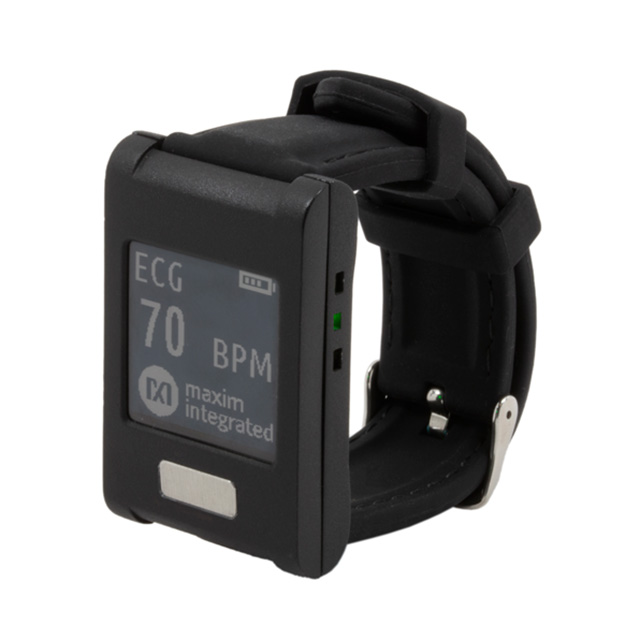

HEALTH SENSOR PLATFORM 2.0Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Sensor Evaluation Boards
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAXREFDES101- is a Health Sensor Platform 2.0, a comprehensive medical sensor evaluation board. This platform integrates several key ICs, including the MAX30001 (bio-potential analog front-end), MAX30205 (medical-grade temperature sensor), MAX32664 (microcontroller with integrated sensor fusion), and MAX86141 (optical biosensing module). Designed for rapid prototyping and development, it facilitates the evaluation of advanced physiological monitoring capabilities. This solution is particularly relevant for applications in wearable health devices, remote patient monitoring, and fitness trackers, enabling the collection of vital signs such as ECG, PPG, and body temperature. The embedded nature of the platform allows for immediate integration into system designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Sensitivity | - |
| Interface | - |
| Voltage - Supply | - |
| Sensor Type | Medical |
| Utilized IC / Part | MAX30001, MAX30205, MAX32664, MAX86141 |
| Supplied Contents | Board(s) |
| Embedded | Yes |
| Sensing Range | - |
Request a Quote
