MAX7044AKA+T
RF TX IC ASK 300-450MHZ SOT23-8Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: RF Transmitters
Quality Control: Learn More

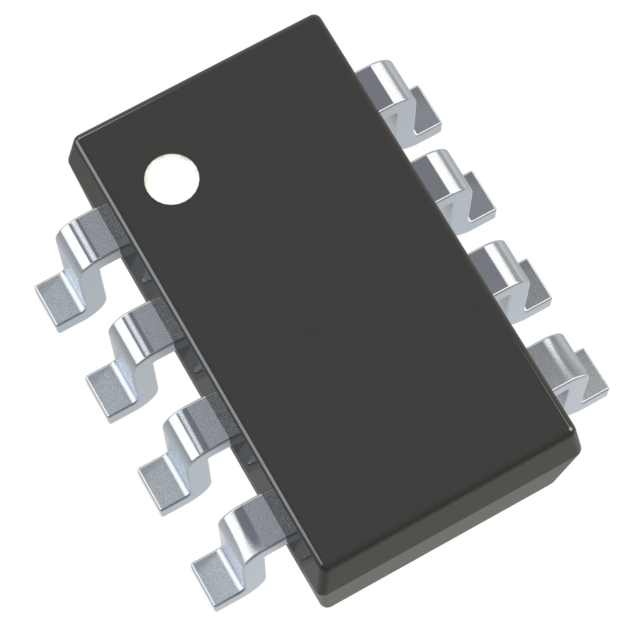

Analog Devices Inc./Maxim Integrated MAX7044AKA-T is a highly integrated RF transmitter IC designed for low-power applications. Operating within the 300MHz to 450MHz frequency band, this component supports ASK and OOK modulation schemes, enabling data rates up to 100Kbps. The MAX7044AKA-T delivers a nominal output power of 12.5dBm and features a compact SOT-23-8 package suitable for surface-mount assembly. Its design includes a PCB-mount antenna connection, simplifying board layout. Typical applications for this device include Remote Keyless Entry (RKE), Tire Pressure Monitoring (TPM), and various security systems. The transmitter operates efficiently with a supply voltage range of 2.1V to 3.6V and a typical transmitting current of 14mA. This component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Mounting Type | Surface Mount |
| Frequency | 300MHz ~ 450MHz |
| Memory Size | - |
| Modulation or Protocol | ASK, OOK |
| Data Interface | PCB, Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.1V ~ 3.6V |
| Power - Output | 12.5dBm |
| Applications | RKE, TPM, Security Systems |
| Data Rate (Max) | 100Kbps |
| Current - Transmitting | 14mA |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | SOT-23-8 |
| Programmable | Not Verified |
