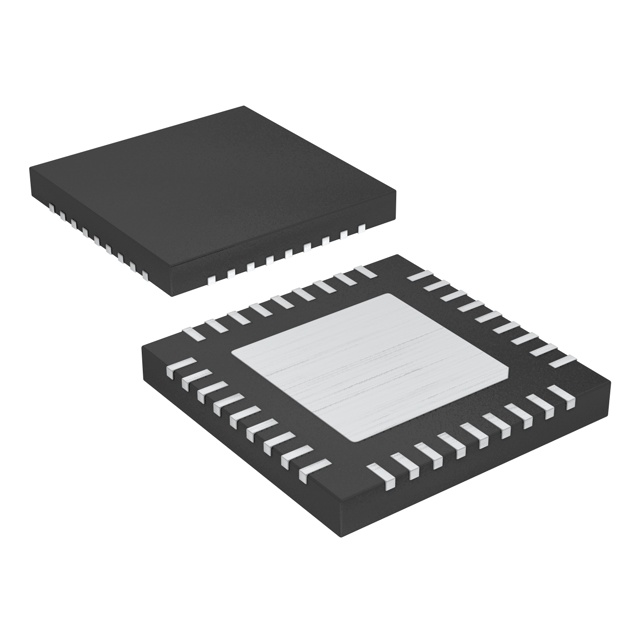

MAX9985ETX
IC MIXER DOWN CONV DUAL 36-TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX9985ETX is a dual RF mixer designed for downconversion applications. This component, part of the MAX9985 series, operates within a frequency range of 700MHz to 1GHz, supporting various wireless communication standards including Cellular, DCS, EDGE, PCS, UMTS, and WLL. It features a typical gain of 6dB and a noise figure of 10.5dB, suitable for demanding RF front-end designs. The device requires a supply voltage between 4.75V and 5.25V, with a current draw of 440mA. Packaged in a 36-TQFN (6x6) with an exposed pad, it is designed for surface mounting. This mixer is commonly utilized in wireless infrastructure, mobile communications, and point-to-point radio systems.
Additional Information
Series: MAX9985RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 36-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 700MHz ~ 1GHz |
| RF Type | Cellular, DCS, EDGE, PCS, UMTS, WLL |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 6dB |
| Current - Supply | 440mA |
| Secondary Attributes | Down Converter |
| Noise Figure | 10.5dB |
| Number of Mixers | 1 |
| Supplier Device Package | 36-TQFN (6x6) |
