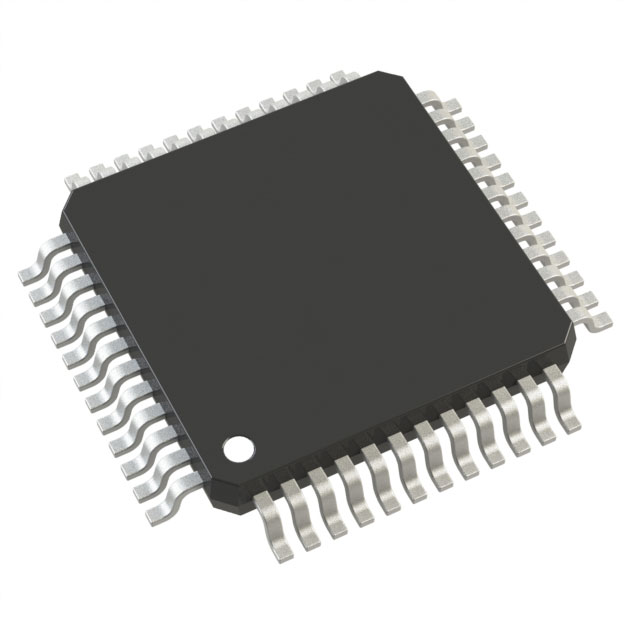

MAX2745ECM+TD
IC GPS RF FRONT END 48TQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: RF Front End (LNA + PA)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX2745ECM-TD is a highly integrated RF front-end solution for GPS receivers. This component is engineered to optimize signal acquisition and tracking performance for the L1 band (1575.42MHz). It incorporates a Low Noise Amplifier (LNA) and a Power Amplifier (PA) within a single package, simplifying system design and reducing component count. The MAX2745ECM-TD is supplied in a 48-TQFP-EP (7x7) package, featuring an exposed pad for enhanced thermal management. This device is well-suited for applications demanding robust GPS reception, including automotive navigation systems, portable location devices, and asset tracking solutions. The component is delivered in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP Exposed Pad |
| Frequency | 1575.42MHz |
| RF Type | GPS |
| Supplier Device Package | 48-TQFP-EP (7x7) |
