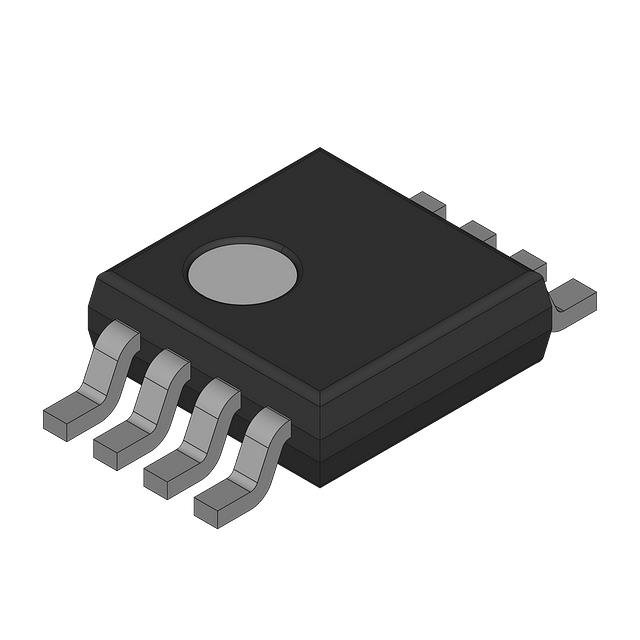

MAX4003EUA+T
IC RF DETECT 100MHZ-2.5GHZ 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: RF Detectors
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX4003EUA-T is a monolithic RF detector IC designed for high-performance wireless applications. This component covers a broad frequency range from 100MHz to 2.5GHz, making it suitable for cellular, TDMA, CDMA, GPRS, and GSM communication standards. The MAX4003EUA-T features an input sensitivity range from -45dBm to 0dBm, enabling accurate signal level monitoring across various power conditions.
Operating from a supply voltage of 2.7V to 5V, this device draws a quiescent current of 5.9mA. It is housed in an 8-uMAX/uSOP package, presenting a compact surface mount solution for PCB integration. The 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) form factor is ideal for space-constrained designs. The MAX4003EUA-T is supplied in tape and reel packaging, facilitating high-volume automated assembly processes. Its robust design is leveraged in base stations, mobile devices, and other wireless infrastructure requiring precise RF power measurement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Frequency | 100MHz ~ 2.5GHz |
| Accuracy | - |
| RF Type | Cellular, TDMA, CDMA, GPRS, GSM |
| Voltage - Supply | 2.7V ~ 5V |
| Input Range | -45dBm ~ 0dBm |
| Supplier Device Package | 8-uMAX/uSOP |
| Current - Supply | 5.9 mA |
