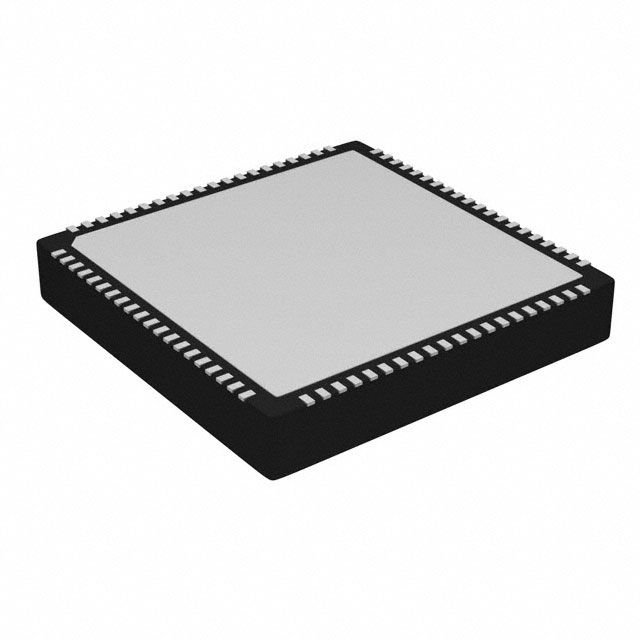

SC2200A-00A00EW
IC AMP CDMA 698MHZ-2.7GHZ 80QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated SC2200A-00A00EW is a highly integrated RF amplifier designed for demanding wireless applications. This component supports multiple cellular standards including CDMA, LTE, W-CDMA, and WiMAX across a broad frequency range of 698MHz to 2.7GHz. Featuring a nominal gain of 10dB, it is suitable for base station and subscriber equipment. The 80-QFN (11x11) exposed pad package facilitates efficient thermal management and robust surface mounting. Operating from a 1.8V supply, this amplifier draws approximately 1.3A, delivering efficient performance in mobile infrastructure and broadband wireless access systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 80-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 698MHz ~ 2.7GHz |
| RF Type | CDMA, LTE, W-CDMA, WiMAX |
| Voltage - Supply | 1.8V |
| Gain | 10dB |
| Current - Supply | 1.3A |
| Noise Figure | - |
| P1dB | - |
| Test Frequency | - |
| Supplier Device Package | 80-QFN (11x11) |
