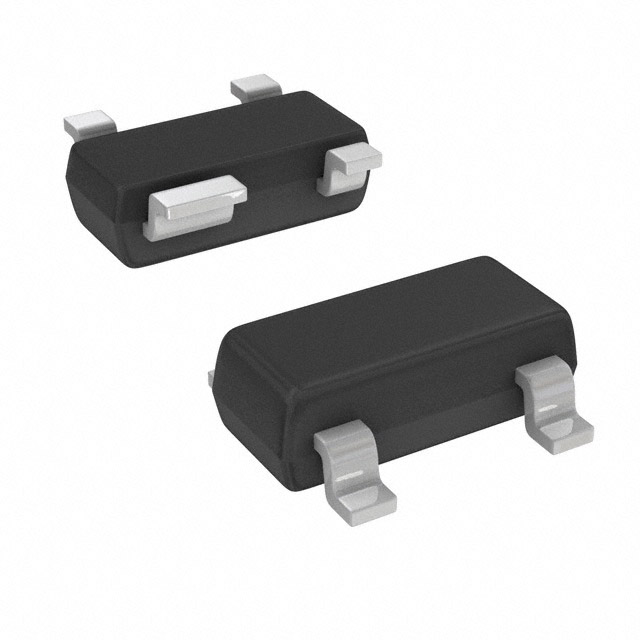

MAX2611EUS+T
IC AMP GPS 0HZ-1.1GHZ SOT143-4Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX2611EUS-T is a silicon germanium (SiGe) RF amplifier designed for high-performance wireless applications. Operating across a wide frequency range from 0Hz to 1.1GHz, this component delivers a typical gain of 18.3dB at 1.1GHz. It is optimized for global positioning system (GPS), Industrial, Scientific and Medical (ISM), Personal Communications Service (PCS), Set Top Box, Wireless Local Loop (WLL), and Wireless Local Area Network (WLAN) systems. The MAX2611EUS-T features a low supply current of 16mA from a 5V supply. Supplied in a compact SOT-143-4 package, it is suitable for surface-mount assembly and is provided on a tape and reel for automated manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 1.1GHz |
| RF Type | GPS, ISM, PCS, Set Top Box, WLAN, WLL |
| Voltage - Supply | 5V |
| Gain | 18.3dB |
| Current - Supply | 16mA |
| Noise Figure | - |
| P1dB | - |
| Test Frequency | - |
| Supplier Device Package | SOT-143-4 |
