MAX2371EGC+T
IC RF AMP 100MHZ-1GHZ 12QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: RF Amplifiers
Quality Control: Learn More

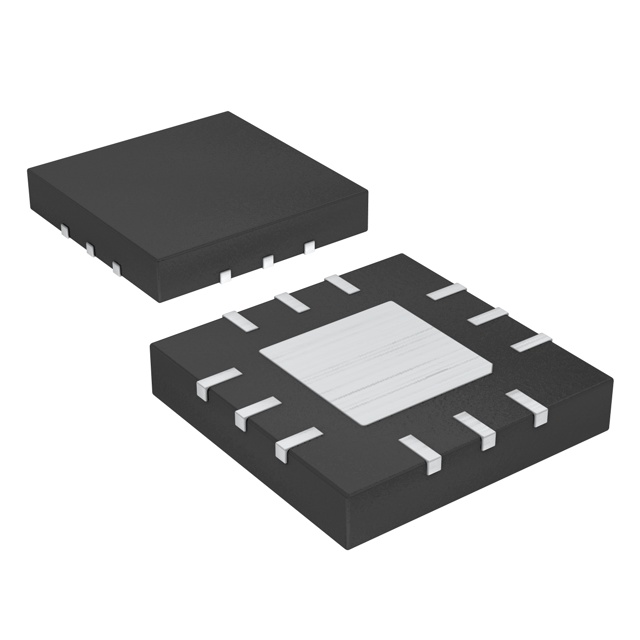

Analog Devices Inc./Maxim Integrated MAX2371EGC-T is a high-performance RF amplifier integrated circuit designed for operation across a frequency range of 100MHz to 1GHz. This component offers a typical gain of 14.5dB at the test frequency, with a P1dB output power rating of 19.5dBm, making it suitable for demanding RF applications. The device operates from a supply voltage of 2.65V to 3.3V and exhibits a low current consumption of 3.5mA. The MAX2371EGC-T is supplied in a compact 12-QFN (3x3) package, featuring an exposed pad for enhanced thermal performance. This surface-mount component is utilized in various industries requiring robust RF signal amplification, including wireless communications and signal processing systems. The component is delivered on a tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 100MHz ~ 1GHz |
| RF Type | - |
| Voltage - Supply | 2.65V ~ 3.3V |
| Gain | 14.5dB |
| Current - Supply | 3.5mA |
| Noise Figure | - |
| P1dB | 19.5dBm |
| Test Frequency | - |
| Supplier Device Package | 12-QFN (3x3) |
