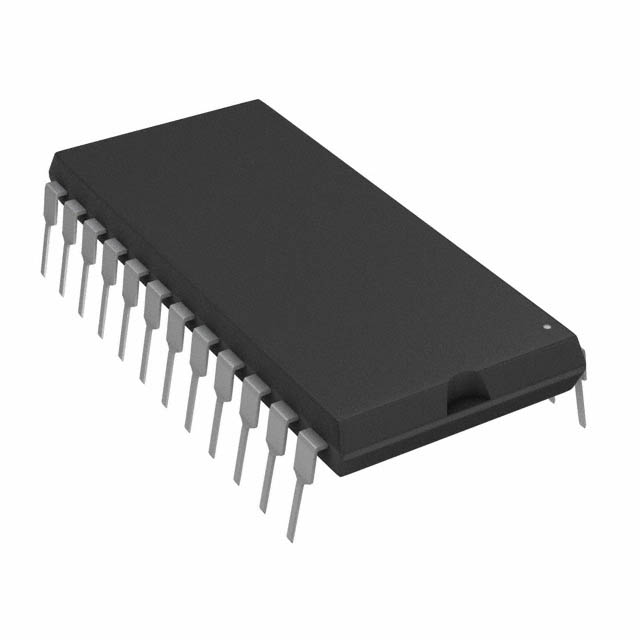

DS17885-3+
IC RTC CLK/CALENDAR PAR 24DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Real Time Clocks
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS17885-3 is a Clock/Calendar IC featuring an 8KB parallel interface. This Real Time Clock (RTC) boasts a parallel interface for data and address access, along with programmable alarm functions, daylight saving compensation, and leap year correction. It also includes NVSRAM for data retention and a square wave output. The DS17885-3 operates from a supply voltage of 2.7V to 3.7V and draws a maximum of 2mA at 2.7V during timekeeping. The device supports both 12 and 24-hour time formats and a YY-MM-DD-dd date format. Packaged in a 24-DIP (0.600", 15.24mm) through-hole mount, this component is suitable for applications in industrial and consumer electronics. It is supplied in tubes. Operating temperature ranges from 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output |
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 8KB |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.7V |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 24-PDIP |
| Voltage - Supply, Battery | 2.5V ~ 3.7V |
| Current - Timekeeping (Max) | 2mA @ 2.7V ~ 3.7V |
| Programmable | Not Verified |
