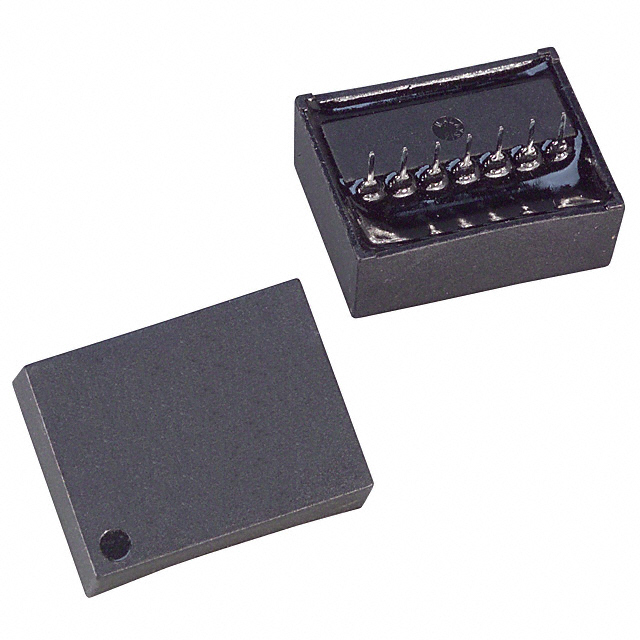

DS1603+
IC RTC ELAPSED CTR SER 14EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Real Time Clocks
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS1603- is a real-time clock (RTC) IC featuring an elapsed time counter and a 3-wire serial interface. This component is housed in a 14-EDIP package with a 14-DIP Module (0.335", 8.51mm) footprint, suitable for through-hole mounting. It operates within a voltage range of 4.5V to 5.5V, with a timekeeping current consumption of up to 50µA at 5V. The DS1603- supports binary date and time formats. Its design makes it applicable in various industrial and commercial systems requiring precise timekeeping and elapsed time tracking. The device is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 14-DIP Module (0.335"", 8.51mm) |
| Mounting Type | Through Hole |
| Memory Size | - |
| Interface | 3-Wire Serial |
| Type | Elapsed Time Counter |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | Binary |
| Date Format | Binary |
| Supplier Device Package | 14-EDIP |
| Voltage - Supply, Battery | 3V ~ 4.5V |
| Current - Timekeeping (Max) | 50µA @ 5V |
| Programmable | Not Verified |
