DS1554W-120+

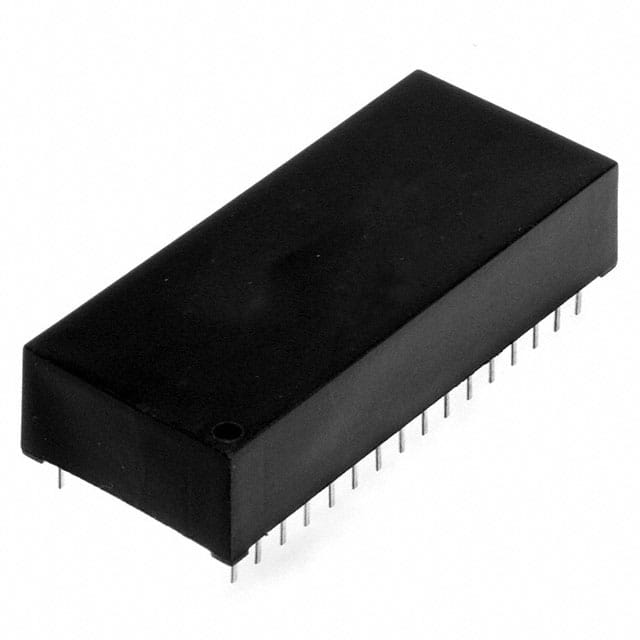

IC RTC CLK/CALENDAR PAR 32-EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Real Time Clocks
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1554W-120- is a Real Time Clock (RTC) with a 32KB parallel interface and integrated calendar functionality. This Clock/Calendar module, housed in a 32-EDIP package, offers features such as an alarm, leap year compensation, NVSRAM, and a watchdog timer, supporting Y2K compliance. Operating within a 0°C to 70°C temperature range, it requires a supply voltage from 2.97V to 3.63V and draws a maximum of 4mA at 3.3V for timekeeping. The device supports HH:MM:SS (24 hr) time format and YY-MM-DD-dd date format. Its through-hole mounting type and parallel interface make it suitable for applications in industrial control, data logging, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Leap Year, NVSRAM, Watchdog Timer, Y2K |
| Packaging | Bulk |
| Package / Case | 32-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 32KB |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.97V ~ 3.63V |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 32-EDIP |
| Voltage - Supply, Battery | - |
| Current - Timekeeping (Max) | 4mA @ 3.3V |
| Programmable | Not Verified |
