DS1501YZ+T&R
IC RTC CLK/CALENDAR PAR 28SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Real Time Clocks
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS1501YZ-T-R is a real-time clock (RTC) and calendar integrated circuit featuring a parallel interface. This component includes 256 bytes of NVSRAM for data storage. Key features include alarm functionality, leap year compensation, and a watchdog timer. The device operates within a supply voltage range of 4.5V to 5.5V, with a separate battery voltage input of 2.5V to 3.7V for timekeeping. It supports both timekeeping (max 5mA @ 4.5V ~ 5.5V) and provides a square wave output. The date is formatted as YY-MM-DD-dd, and the time as HH:MM:SS (24 hr). Packaged in a 28-SOIC (0.295", 7.50mm Width) surface mount configuration, it is supplied on tape and reel. Operating temperature ranges from 0°C to 70°C. This component is suitable for applications requiring precise timekeeping and calendar functions, including industrial control, data logging, and embedded systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer, Y2K |
| Packaging | Tape & Reel (TR) |

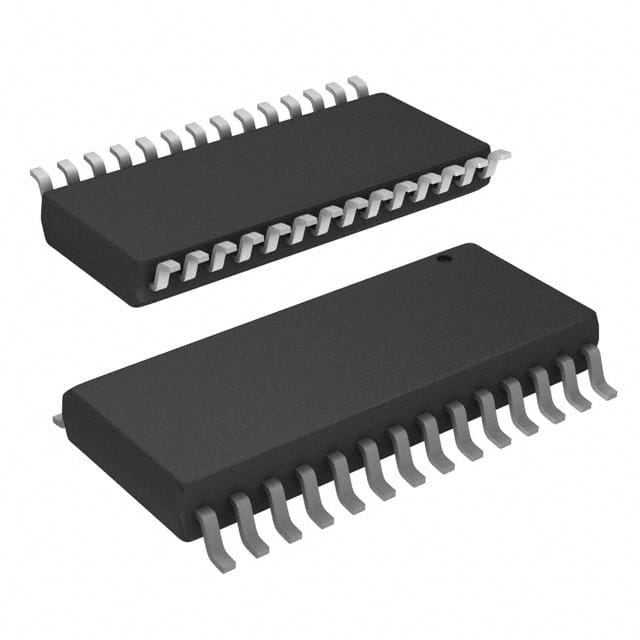

| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 256B |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 28-SOIC |
| Voltage - Supply, Battery | 2.5V ~ 3.7V |
| Current - Timekeeping (Max) | 5mA @ 4.5V ~ 5.5V |
| Programmable | Not Verified |
