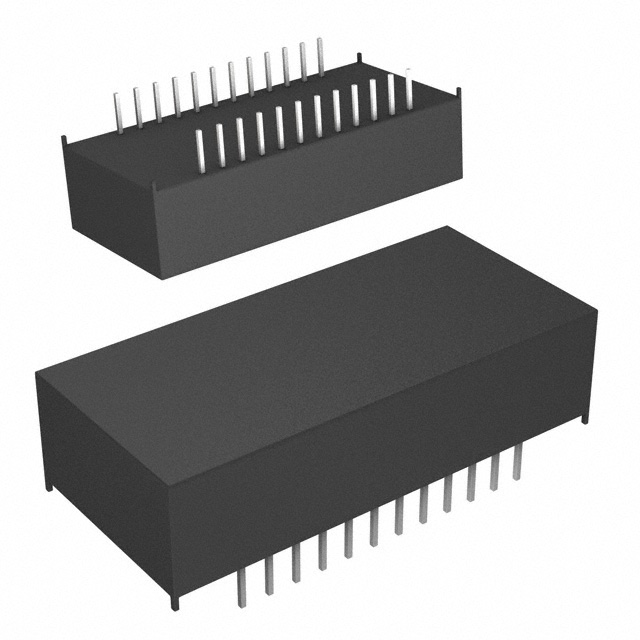

DS12887+
IC RTC CLK/CALENDAR PAR 24EDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Real Time Clocks
Quality Control: Learn More
Real Time Clock (RTC) IC Clock/Calendar 114B Parallel 24-DIP Module (0.600"", 15.24mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output |
| Packaging | Tube |
| Package / Case | 24-DIP Module (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 114B |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 24-EDIP |
| Voltage - Supply, Battery | 2.5V ~ 4V |
| Current - Timekeeping (Max) | 15mA @ 4.5V ~ 5.5V |
| Programmable | Not Verified |
