DS12885N

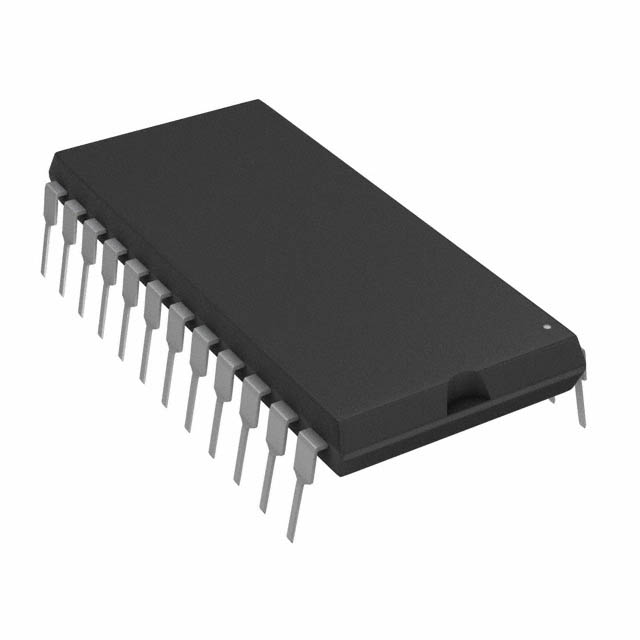

IC RTC CLK/CALENDAR PAR 24DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Real Time Clocks
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated DS12885N is a Real Time Clock (RTC) and Calendar IC featuring 114B of NVSRAM for timekeeping data retention. This component provides a parallel interface for accessing clock and calendar functions, supporting both HH:MM:SS (12/24 hr) time and YY-MM-DD-dd date formats. Key features include alarm functionality, daylight savings time correction, leap year calculation, and a square wave output. The DS12885N operates within a supply voltage range of 4.5V to 5.5V, with a timekeeping current draw of up to 15mA at 5V. It also supports a battery supply voltage range of 2.5V to 4V for uninterrupted operation. Designed for through-hole mounting, the device is housed in a 24-PDIP package with a 0.600" width. Operating temperatures range from -40°C to 85°C. This component is commonly utilized in industrial control, medical devices, and communication systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output |
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Memory Size | 114B |
| Interface | Parallel |
| Type | Clock/Calendar |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 24-PDIP |
| Voltage - Supply, Battery | 2.5V ~ 4V |
| Current - Timekeeping (Max) | 15mA @ 4.5V ~ 5.5V |
| Programmable | Not Verified |
