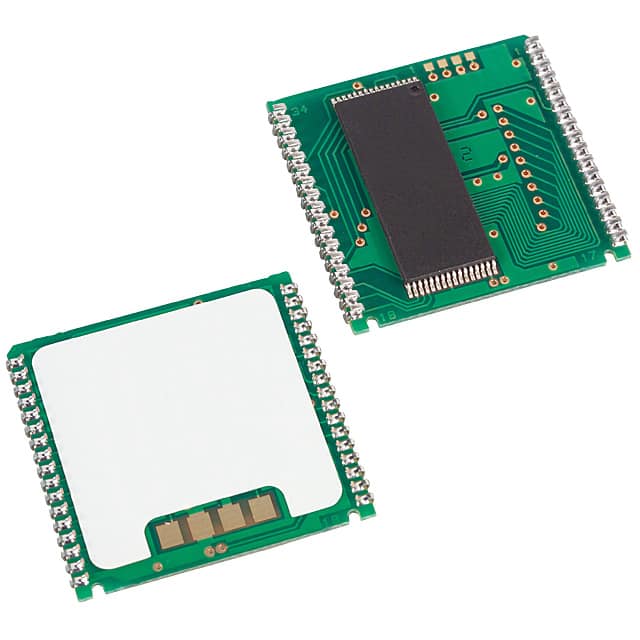

DS1248WP-120IND+
IC RTC PHANTOM PAR 34-PCMManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Real Time Clocks
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1248WP-120IND- is a 128KB Phantom Time Chip with a parallel interface. This Real Time Clock (RTC) IC features NVSRAM for data retention and a 34-PowerCap™ Module for integrated battery backup. Designed for surface mounting, it operates within a temperature range of -40°C to 85°C and requires a supply voltage between 2.97V and 3.63V, with a 3V battery voltage for timekeeping. The device supports both YY-MM-DD-dd and HH:MM:SS:hh (12/24 hr) date and time formats. It is utilized in industrial automation, telecommunications, and instrumentation applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | NVSRAM |
| Packaging | Tray |
| Package / Case | 34-PowerCap™ Module |
| Mounting Type | Surface Mount |
| Memory Size | 128KB |
| Interface | Parallel |
| Type | Phantom Time Chip |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.97V ~ 3.63V |
| Time Format | HH:MM:SS:hh (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 34-PowerCap Module |
| Voltage - Supply, Battery | 3V |
| Current - Timekeeping (Max) | 7mA @ 3.3V |
| Programmable | Not Verified |
