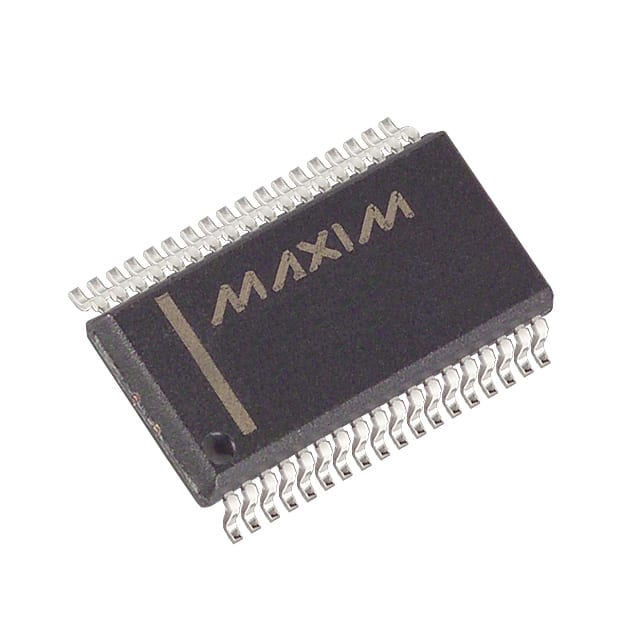

MAX5965AUAX+
IC PSE CTRLR FOR POE 36SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Power Over Ethernet (PoE) Controllers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5965AUAX- is a 4-channel Power Sourcing Equipment (PSE) controller designed to manage Power over Ethernet (PoE) delivery. This device supports both IEEE 802.3at (PoE+) and 802.3af (PoE) standards, enabling flexible power provisioning for connected devices. The MAX5965AUAX- operates within a supply voltage range of 32V to 60V and can deliver up to 45W per channel. It features a 36-SSOP package, suitable for surface mount applications. Key specifications include a quiescent current of 4.8mA and an operating temperature range of 0°C to 85°C. This controller is utilized in networking infrastructure, wireless access points, and security surveillance systems requiring efficient power delivery over Ethernet cabling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 36-BSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | Controller (PSE) |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | 32V ~ 60V |
| Current - Supply | 4.8mA |
| Internal Switch(s) | No |
| Standards | 802.3at (PoE+), 802.3af (PoE) |
| Supplier Device Package | 36-SSOP |
| Auxiliary Sense | No |
| Number of Channels | 4 |
| Power - Max | 45 W |
