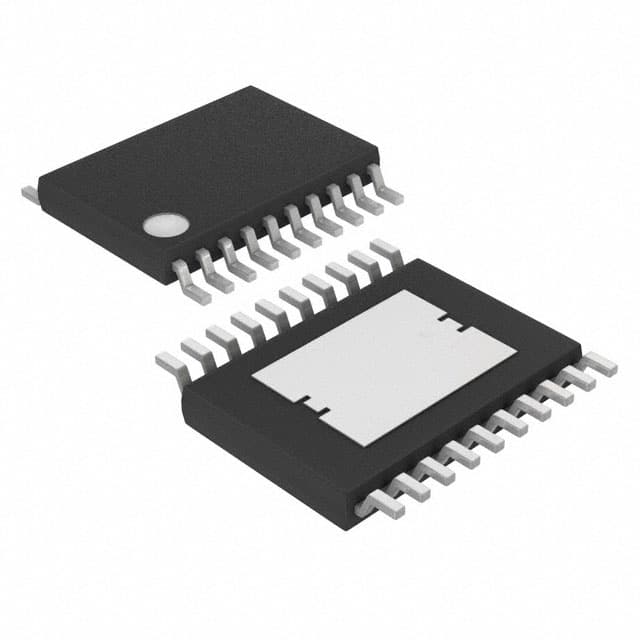

MAX4820EUP+T
IC PWR DRIVER N-CHAN 1:8 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:8 N-Channel 70mA 20-TSSOP-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | SPI |
| Switch Type | Relay, Solenoid Driver |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Low Side |
| Rds On (Typ) | 2Ohm |
| Input Type | - |
| Voltage - Load | 2.3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 70mA |
| Ratio - Input:Output | 1:8 |
| Supplier Device Package | 20-TSSOP-EP |
| Fault Protection | - |
