MAX14913AKN+T
IC PWR DRIVER 1:8 56QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

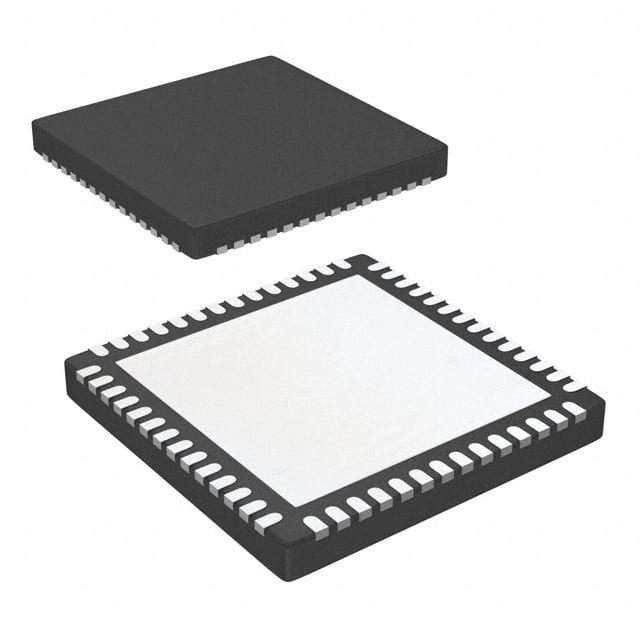

The Analog Devices Inc./Maxim Integrated MAX14913AKN-T is an 8-channel high-side power switch/driver in a 56-QFN (8x8) package. This device features SPI and parallel interfaces for control, with a 1:8 input-to-output ratio. It offers robust fault protection including fixed current limiting, open load detection, over-temperature, over-voltage, and UVLO. Integrated status flags provide operational feedback. The MAX14913AKN-T supports a load voltage range of 10.5V to 36V and a supply voltage of 1.6V to 5.5V, with a typical Rds On of 110mOhm. It operates across an industrial temperature range of -40°C to 125°C. This component is commonly utilized in industrial automation, motor control, and power distribution applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | SPI, Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 110mOhm |
| Input Type | - |
| Voltage - Load | 10.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:8 |
| Supplier Device Package | 56-QFN (8x8) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
