DS32KHZSN
XTAL OSC TCXO 32.7680KHZ CMOSManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Oscillators
Quality Control: Learn More

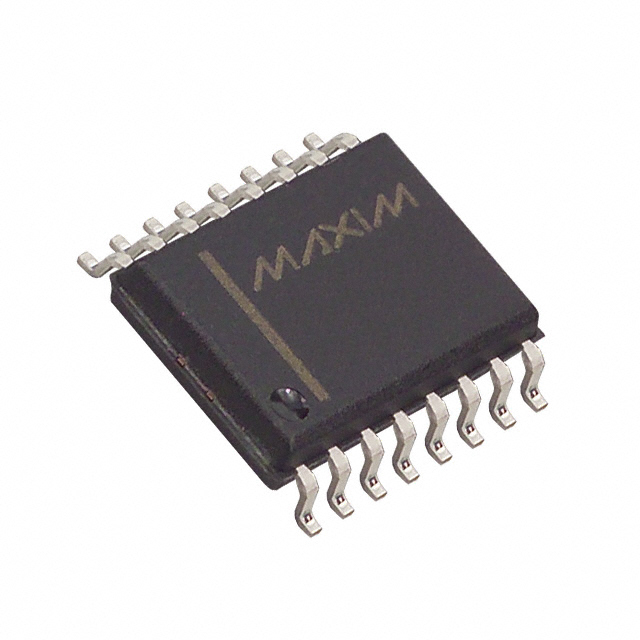

Analog Devices Inc./Maxim Integrated DS series TCXO oscillator, part number DS32KHZSN, offers a precise 32.768 kHz output. This CMOS oscillator is housed in a 16-SOIC package with dimensions of 0.412" L x 0.300" W (10.46mm x 7.62mm), featuring a seated height of 0.105" (2.67mm). Designed for surface mounting, it operates within a supply voltage range of 4.5V to 5.5V and consumes a maximum current of 220µA. The frequency stability is rated at ±7.5ppm over an operating temperature range of -40°C to 85°C. This component is suitable for applications in industrial, medical, and consumer electronics requiring accurate timekeeping.
Additional Information
Series: DSRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Size / Dimension | 0.412"" L x 0.300"" W (10.46mm x 7.62mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | - |
| Type | TCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±7.5ppm |
| Voltage - Supply | 4.5V ~ 5.5V |
| Ratings | - |
| Current - Supply (Max) | 220µA |
| Height - Seated (Max) | 0.105"" (2.67mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 32.768 kHz |
| Base Resonator | Crystal |
