DS32KHZN/WBGA
XTAL OSC TCXO 32.7680KHZ CMOSManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Oscillators
Quality Control: Learn More

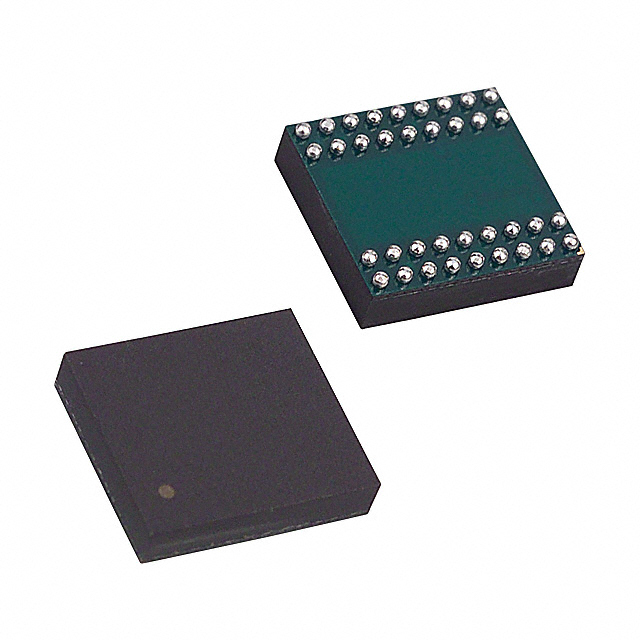

Analog Devices Inc./Maxim Integrated DS32KHZN-WBGA is a 32.768 kHz Temperature Compensated Crystal Oscillator (TCXO) with CMOS output. This DS series component operates from a 5V supply, drawing a maximum of 220µA. The device offers a frequency stability of ±7.5ppm over an operating temperature range of -40°C to 85°C. It is housed in a 36-BGA package with dimensions of 11.43mm x 10.16mm (0.450" L x 0.400" W) and a seated height of 2.56mm (0.101"). The surface-mount component utilizes a crystal as its base resonator. This TCXO finds application in telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: DSRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 36-BGA |
| Size / Dimension | 0.450"" L x 0.400"" W (11.43mm x 10.16mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | - |
| Type | TCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±7.5ppm |
| Voltage - Supply | 5V |
| Ratings | - |
| Current - Supply (Max) | 220µA |
| Height - Seated (Max) | 0.101"" (2.56mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 32.768 kHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy
DS32KHZS/T&R
XTAL OSC TCXO 32.7680KHZ CMOS

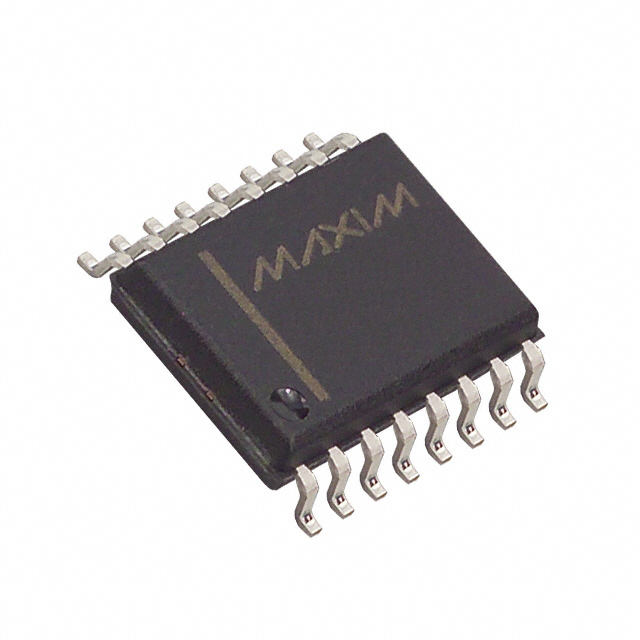

DS32KHZSN/T&R
