MAXREFDES77#
DUAL-CHANNEL, HIGH-PRECISION, HIManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Op Amp Evaluation Boards
Quality Control: Learn More

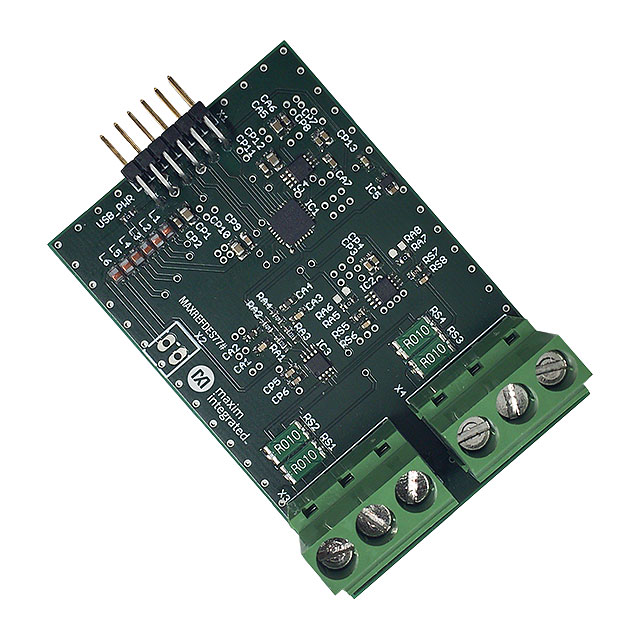

Analog Devices Inc./Maxim Integrated's MAXREFDES77- is a fully populated evaluation board featuring the MAX44285 dual-channel high-precision current sense amplifier. This board is designed for rapid prototyping and evaluation of current sensing applications. The MAX44285 IC offers a 3dB bandwidth of 80 kHz and operates with a single supply voltage ranging from 2.7V to 5.5V, drawing a typical supply current of 1.3 mA. It provides two independent current sense channels per IC, each with a single-ended output. This component is suitable for use in industrial automation, power management, and battery monitoring systems where accurate current measurement is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Single-Ended |
| Amplifier Type | Current Sense |
| Slew Rate | - |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V |
| Board Type | Fully Populated |
| Utilized IC / Part | MAX44285 |
| Supplied Contents | Board(s) |
| Channels per IC | 2 - Dual |
| Current - Supply (Main IC) | 1.3 mA |
| -3db Bandwidth | 80 kHz |
Request a Quote
