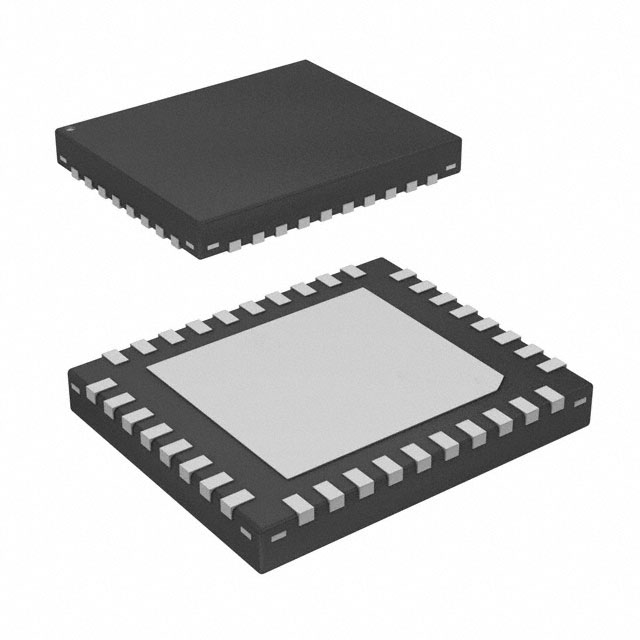

TMC6140-LA-T
GATE DRIVER IC 5-30V QFN36Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver Power MOSFET 36-QFN (5x6)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 500mA |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 3V ~ 3.6V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 5V ~ 30V |
| Supplier Device Package | 36-QFN (5x6) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC), PMSM |
| Step Resolution | - |
