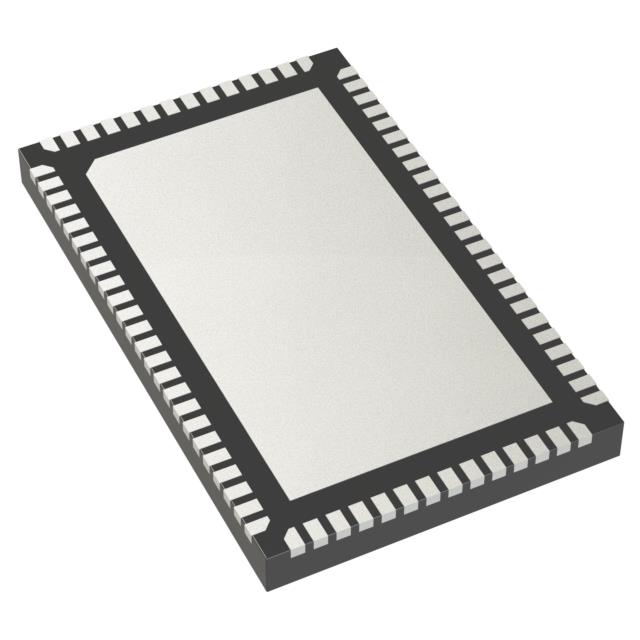

TMC4671-ES
IC MOTOR DRIVER MULTIPHASE 76QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Multiphase Motor Driver Power MOSFET SPI 76-QFN (10.5x6.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 76-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | 4mA |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Pre-Driver - High Side/Low Side |
| Voltage - Supply | 3.15V ~ 3.45V |
| Applications | Servo |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 76-QFN (10.5x6.5) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC), PMSM, DC |
| Step Resolution | - |
