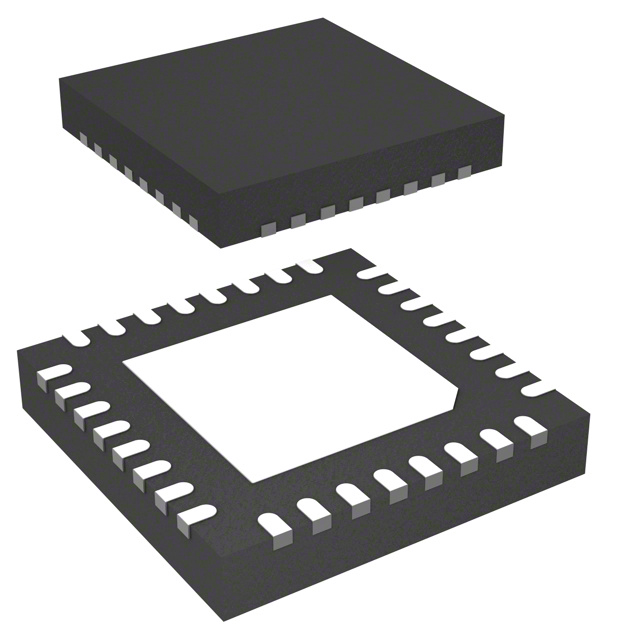

TMC262C-LA
IC MTR DRVR BIPLR 3.3-5.5V 32QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver Power MOSFET SPI, Step/Direction 32-QFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | SPI, Step/Direction |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (4) |
| Voltage - Supply | 3V ~ 5.25V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 9V ~ 59V |
| Supplier Device Package | 32-QFN (5x5) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1 ~ 1/256 |
Request a Quote
