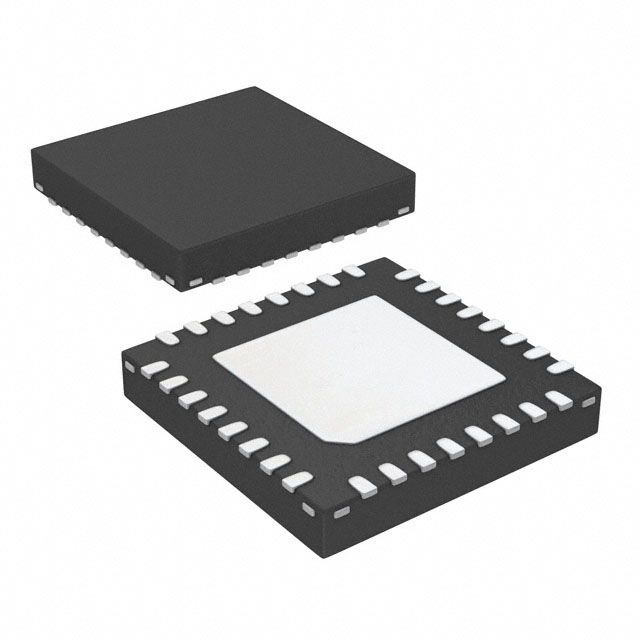

TMC223-LI
IC MTR DRVR BIPOLAR 3.3-5V 32QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver Power MOSFET I2C 32-QFN (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 570mA |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 3.3V ~ 5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 8V ~ 29V |
| Supplier Device Package | 32-QFN (7x7) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
