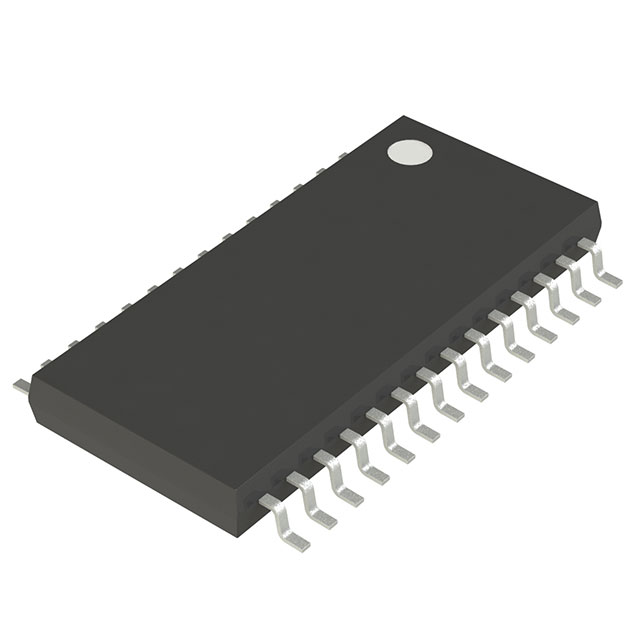

TMC2225-SA-T
IC MTR DRV 4.75-36V HTSSOP28Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver Power MOSFET SPI, Step/Direction, UART 28-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | SPI, Step/Direction, UART |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | SPI, Step/Direction |
| Voltage - Supply | 3V ~ 5.25V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 5.5V ~ 36V |
| Supplier Device Package | 28-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Universal |
| Step Resolution | >256 Microsteps |
Request a Quote
