TMCM-6214-CANOPEN
STEPPER DRIVER 2A 10-30VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More

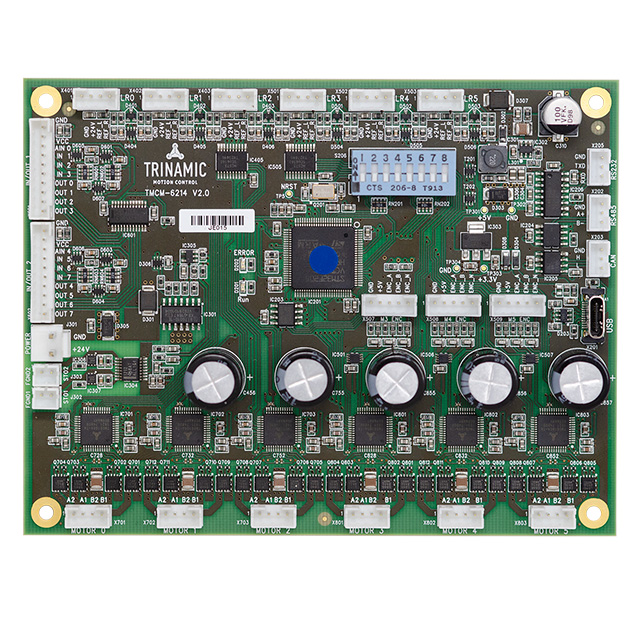

Analog Devices Inc./Maxim Integrated TMCM-6214-CANOPEN is a six-axis stepper motor controller and driver board supporting bipolar stepper motors. This module operates with a load voltage range of 9V to 30V and a typical supply voltage of 24VDC, capable of delivering up to 2A per motor. The TMCM series board offers versatile communication interfaces including CANopen, RS-232, RS-485, and USB, facilitating integration into networked automation systems. Its robust design is suitable for applications in industrial automation, robotics, and motion control systems that require precise multi-axis stepper motor operation. The board is designed for chassis mounting.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 2A |
| Interface | CAN, RS-232, RS-485, USB |
| Type | Board |
| Operating Temperature | -30°C ~ 40°C |
| Voltage - Supply | 24VDC |
| Voltage - Load | 9 ~ 30V |
| Number of Motors | 6 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
