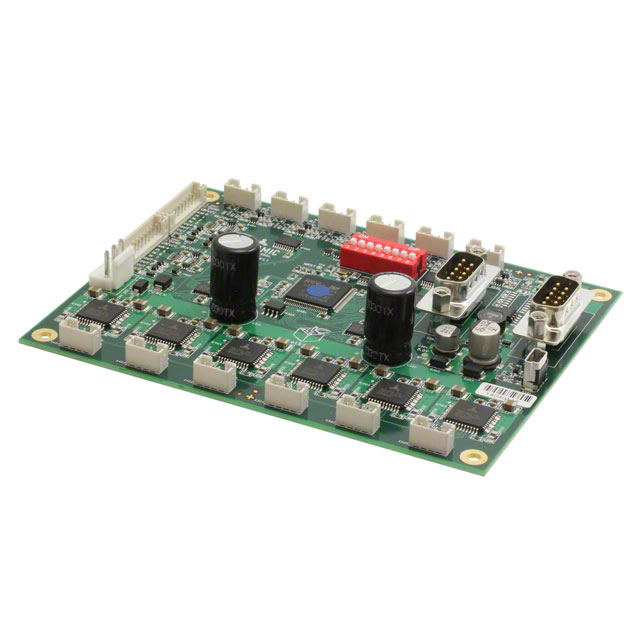

TMCM-6110
STEPPER DRIVER 1.1A 7-34V LOADManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated TMCM-6110 is a six-axis stepper motor controller and driver board within the TMCM series. Designed for bipolar stepper motors, this module operates with a supply voltage range of 12 to 34VDC and provides a load voltage of 7 to 34V. Each of the six axes can deliver up to 1.1A of output current. Communication with the TMCM-6110 is facilitated via CAN and RS-485 interfaces. This component is suitable for applications requiring precise multi-axis motion control, commonly found in industrial automation, robotics, and medical equipment. The board features chassis mounting for integration into larger systems and operates within an ambient temperature range of -40°C to 70°C.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 71 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 1.1A |
| Interface | CAN, RS-485 |
| Type | Board |
| Operating Temperature | -40°C ~ 70°C |
| Voltage - Supply | 12 ~ 34VDC |
| Voltage - Load | 7 ~ 34V |
| Number of Motors | 6 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
