TMCM-343-H-TMCL
STEPPER DRIVER 1.1AManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More

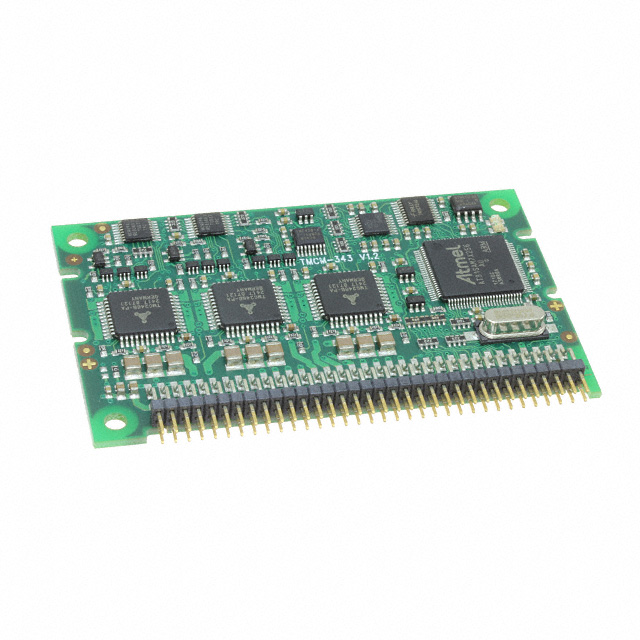

Analog Devices Inc./Maxim Integrated TMCM-343-H-TMCL is a three-axis bipolar stepper motor controller board from the TMCM series. Engineered for demanding motion control applications, this module operates from a 12V to 28VDC supply and delivers up to 1.1A per phase output current. The board facilitates control via RS-485 and UART interfaces, enabling integration into complex automation systems. Its robust design supports chassis mounting and operates reliably within a temperature range of -40°C to 80°C. This component is suitable for use in industrial automation, robotics, and medical equipment where precise stepper motor control is critical.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 78 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 1.1A |
| Interface | RS-485, UART |
| Type | Board |
| Operating Temperature | -40°C ~ 80°C |
| Voltage - Supply | 12 ~ 28VDC |
| Voltage - Load | - |
| Number of Motors | 3 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
