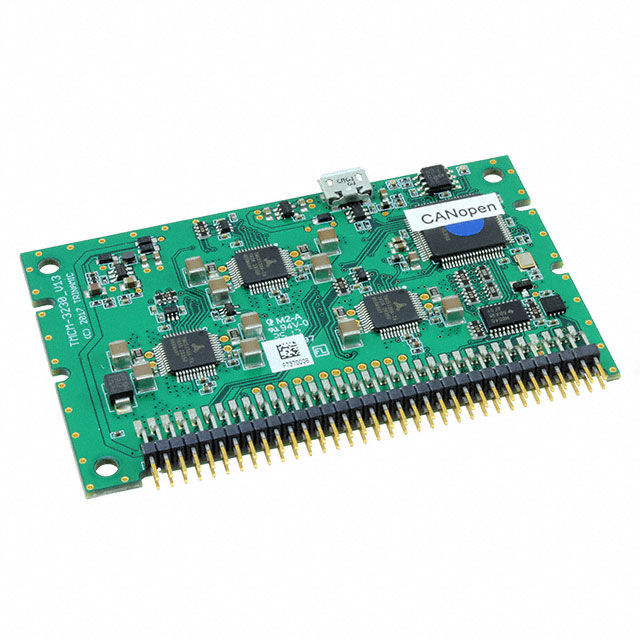

TMCM-3230-CANOPEN
BOARD CONTROL STEPPER MOTOR CANOManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-3230-CANOPEN is a three-axis bipolar stepper motor control board designed for industrial automation and motion control applications. This TMCM series module features a robust 12-24VDC supply voltage range and a 1A per phase output current capability, supporting bipolar stepper motors. Communication interfaces include CANopen, SPI, and UART, facilitating integration into various networked systems. The board is chassis mountable and operates reliably within a -30°C to 40°C temperature range. This component is suitable for demanding environments requiring precise motor control.
Additional Information
Series: TMCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 69 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 1A |
| Interface | CAN, SPI, UART |
| Type | Board |
| Operating Temperature | -30°C ~ 40°C |
| Voltage - Supply | 12 ~ 24VDC |
| Voltage - Load | 12 ~ 24V |
| Number of Motors | 3 |
| Motor Type | Stepper |
| Control / Drive Type | Stepper, Bipolar |
