TMCM-1636-48V-CANOPEN
BLDC/DC SERVO DRIVE, 20A, 48VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More

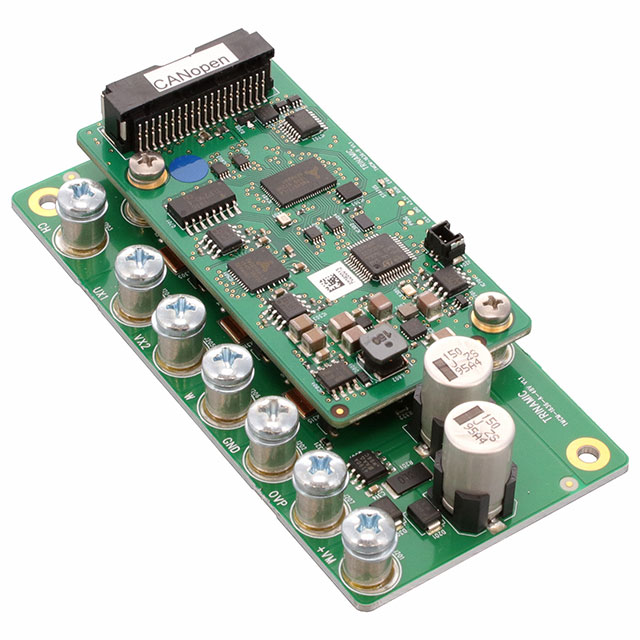

Analog Devices Inc./Maxim Integrated TMCM-1636-48V-CANOPEN is a single-axis servo drive module designed for Brushless DC (BLDC) and DC servo motors. This module supports a load voltage range of 12V to 60V and a supply voltage of 48V, delivering up to 20A continuous output current, enabling operation with motors up to 1000W. The TMCM series drive features CANopen communication for integration into industrial automation systems, commonly found in robotics, factory automation, and material handling equipment. Its robust design includes a chassis mount for secure installation and an operational temperature range of -30°C to 60°C, ensuring reliable performance in demanding environments.
Additional Information
Series: TMCMRoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 20A |
| Type | Board |
| Operating Temperature | -30°C ~ 60°C |
| Voltage - Supply | 48V |
| Voltage - Load | 12V ~ 60V |
| Number of Motors | 1 |
| Motor Type | Brushless (BLDC) |
| Control / Drive Type | Brushless |
| Wattage - Load | 1000 W |
