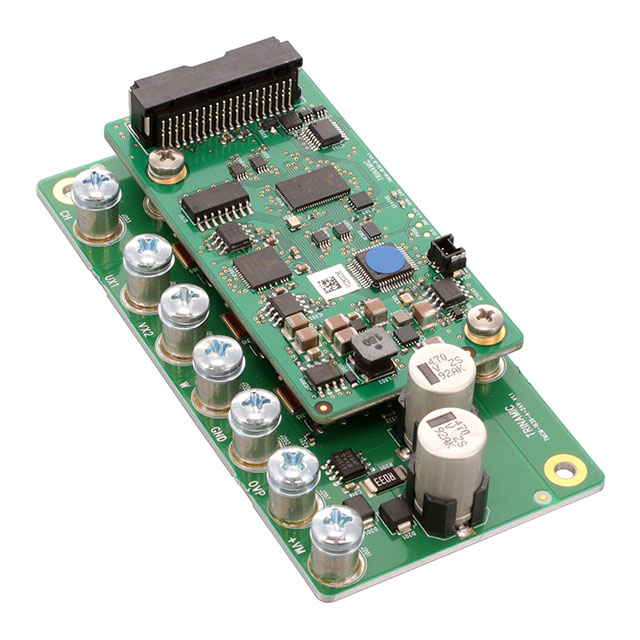

TMCM-1636-24V-TMCL
BLDC/DC SERVO DRIVE, 30A, 24VManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Motor Driver Boards, Modules
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated TMCM-1636-24V-TMCL is a single-axis servo drive board designed for demanding applications. This TMCM series module supports brushless DC (BLDC) motors and operates from a 24VDC supply voltage, with a load voltage range of 12V to 28V. It delivers a continuous output current of 30A, enabling efficient control of motors up to 1000W. Engineered for chassis mounting, this board features robust thermal management suitable for operating temperatures from -30°C to 60°C. Its design is well-suited for industrial automation, robotics, and advanced motion control systems where high current and precise BLDC motor performance are critical.
Additional Information
Series: TMCMRoHS Status: RoHS non-compliantManufacturer Lead Time: 73 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| For Use With/Related Products | - |
| Mounting Type | Chassis Mount |
| Current - Output | 30A |
| Type | Board |
| Operating Temperature | -30°C ~ 60°C |
| Voltage - Supply | 24VDC |
| Voltage - Load | 12V ~ 28V |
| Number of Motors | 1 |
| Motor Type | Brushless (BLDC) |
| Control / Drive Type | Brushless |
| Wattage - Load | 1000 W |
